Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation

Product Details

Place of Origin: CHINA

Brand Name: YANING

Certification: CE ISO SGS

Model Number: YN-AFC-002

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Reconsideration USD1,100.00---1,400.00 Set

Packaging Details: The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.

Delivery Time: 7 work days

Payment Terms: Western Union,T/T,L/C

Supply Ability: 100 units/Week

Get Best Price
Product Details
Highlight:

YANING Laminar Air Flow Unit

,

Ceiling Mounted Laminar Air Flow Systems

,

HEPA Suspended Laminar Air Flow Unit

Material::
Powder Coated Steel / SUS304/Galvanized Sheet
Dimension(W*D*H):
2600×1800×500mm
Voltage:
220V/50Hz Or Custom
Warranty:
1 Year
Initial Pressure Drop(pa):
100
Filter Size:
610*305*292mm
Air Filter:
H14 HEPA FILTER
HEPA Filter Qty:
6 Pcs
Filter Efficiency:
H14, 99.995%@0.3um
Air Supply Mode:
Side Supply /top Supply
Air Velocity:
0.25m/s~0.60m/s
Material::
Powder Coated Steel / SUS304/Galvanized Sheet
Dimension(W*D*H):
2600×1800×500mm
Voltage:
220V/50Hz Or Custom
Warranty:
1 Year
Initial Pressure Drop(pa):
100
Filter Size:
610*305*292mm
Air Filter:
H14 HEPA FILTER
HEPA Filter Qty:
6 Pcs
Filter Efficiency:
H14, 99.995%@0.3um
Air Supply Mode:
Side Supply /top Supply
Air Velocity:
0.25m/s~0.60m/s
Product Description

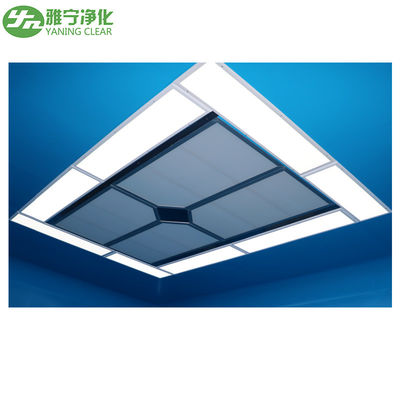

Laminar Flow Ceiling


Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 0

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 1

Product Description
Laminar air supply ceiling is a non-inductive air supply device centrally arranged above the operating table in the clean operating room of a modern hospital. It is the purification air supply terminal of clean operating room and laminar flow ward. It has high-efficiency filtration, flow equalization and airflow compensation. The cabinet is made of electrolytic steel plates, the high-efficiency filter is laid out in a tiled arrangement, which fully guarantees the laminar flow area of the ceiling filter to achieve a higher cleaning effect; at the same time, the filter can be put at side according to customer needs, providing HVAC designers with a variety of options. The air supply ceiling center uses an airflow compensating device to fully offset the interference of personnel on the laminar flow effect. It is divided into I,II,III, IV laminar flow purification air supply ceiling, laminar flow ceiling in burn ward, laminar flow ceiling in blood ward and laminar flow ceiling in ophthalmic operating room.


Product Parameters



Product Model

Model/Parameter

Dimensions
W*H*D(mm)

HEPA Filter Siz
W*H*D(mm)

HEPA Filter Qty

Remarks

YN-CL01-001

Laminar flow ceiling I

2600*2400*500

1196*676*69(H14)

4 Pcs

Special size can be customized upon request

946*366*69(H14)

4 Pcs

YN-CL02-001

Laminar flow ceiling II

2600*1800*500

1196*546*69(H14)

4 Pcs

946*462*69(H14)

2 Pcs

YN-CL03-001

Laminar flow ceiling III,IV Laminar flow ceiling in burn ward

2600*1400*500

1196*346*69(H14)

4 Pcs

946*462*69(H14)

2 Pcs

YN-CL04-001

Laminar flow ceiling in blood ward

2850*2500*500

1321*726*69(H14)

4 Pcs

946*366*69(H14)

4 Pcs

YN-CL05-001

Laminar flow ceiling in ophthalmic OT

1500*1500*500

662*646*69(H14)

2 Pcs


Medical Equipment Series


Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 2
Laminar Flow Ceiling
Filter Media: H13 or H14 glass fiber
Cabinet Material: Aluminum galvanized sheet / powder coated steel / Stainless steel 201/304
Air Speed : 0.25-0.60m/s
* Easy installation and filters replacement.
* Simple fixation system.
* Air diffusion through metal grill or stretch fabric.
* Lateral duct connections.


Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 3

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 4


Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 5
PLC Control Panel / Door Phone
The product has the characteristics of high transparency, high strength and high light transmittance;
Compared with the button-type operatingroom control panel,it is more convenient ;
International capacitive screen,the surface is tempered glass;
Industrial-grade control,system stability, high sensitivity,support for various communications,energy saving and consumption reduction;
The flat type is easy to clean and scratch resistant,and it can be touched after being wetted with water,and no dirt
can be hidden.
It is easy to set and check the working status of various equipment in the operating room,fault conditions,and environmental parameters such as temperature and humidity in the operating room.


Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 6
Hospital Door
The surface of the door leaf can be optionallycoated with antibacterial coating to prevent crossContamination and meet the needs of a sterileenvironment
Double sealing of leaf and frame with uniquealuminum structure and sealing tape, with goodairight effe ct
The door opens and closes quickly,and alsoprovides dual doorinterlock function,locking everybit of clean air for you
A wide range of product styles,materials andglass viewing window structures are available tomeet customer needs
Automatic swing door features. high qualityimported humanized control and operation of thedrive motor, automatic delayed closing (timeadiustable),also provide automatic,normalopen,normal closed,half open one-way passageand othermodes






Medical Cabinets


Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 7

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 8

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 9

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 10

Anesthesia Cabinet Medicine Cabinet Instrument Cabinet Catheter Cabinet

Other Materials


Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 11

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 12

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 13

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 14

Gas Socket Box Power Socket Box Writing Desk X-ray Viewing Box

Success case show


Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 15

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 16

Our Factory


Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 17
Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than 30,000 square meters, and an annual output value of more than 300 million RMB.

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 18
Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and
has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong


Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 19

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 20

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 21

Packing&Delivery


Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 22

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 23

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 24

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 25

Packaging
The product is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.
shipping
Samples be shipped by DHL/FedExUSP and so on Mass production be shippinh by Air or Sea

Exhibition


Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 26

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 27

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 28

Clean Room HEPA Ceiling Mounted Suspended Laminar Air Flow Unit For OT Room Ultra Clean Air Ventilation 29

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 200 people in our office.Our company and factory are located in Dongguan City, Guangdong Province, China. We welcome you to visit us at your convenience to learn about our factory and products.

2.What can you buy from us?
Air Shower, Cargo Air Shower,PVC Fast Rolling Shutter Door,HEPA Box , FFU,BFU, Pass Box, Clean Bench,Clean Booth,Operating Room ,Medical Cabinets,Laminar Flow Ceiling,Medical Scrub Sink,AIR FILTER.

3.How long is your delivery time?
Normally 10-15 days for small bulk after get payment and specification confirmed, delivery is differ from different equipments and qty for bulk production.

4. What's your payment terms?
50% deposit after PI confirmed and balance 50% should be paid before shipment. If the order's total amount below $5000, It should
be paid 100% in advance.

5. Do you provide samples? Yes, we can provide sample, but the customer should be pay sample fee and shipment cost. The sample fee
can be refund after official order placed for same models.
