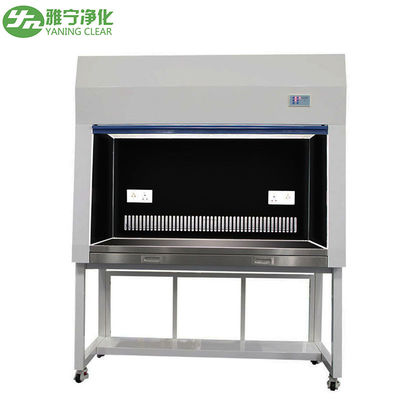

Lab Laminar Air Flow Hood Clean Bench Cabinet With HEPA H14 Filter

Place of Origin CHINA
Brand Name YANING
Certification CE ISO SGS
Model Number YN-CB-001
Minimum Order Quantity 1 SET
Price Reconsideration US$780.00-860.00 Set
Packaging Details The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.
Delivery Time 7 work days
Payment Terms Western Union, T/T, L/C
Supply Ability 100 units/Week
Product Details
Material Powder Coated Steel / SUS304/Galvanized Sheet Dimension(W*D*H) 1000*850*1500mm
Filter Size 900*600*600mm Power 150W
Voltage 220V/50Hz Or Custom Warranty 1 Year
Air Flow 1000 (m3/h) Air Filter H14 HEPA FILTER
Filter Efficiency H14, 99.99%@0.3um Air Velocity 0.3~0.6m/s
LED Lamp Power 20W*1 LED Lamp LUX ≥300lux
High Light

Stainless Steel Laminar Flow Clean Bench

,

H14 Filter Laminar flow clean bench

,

150W Laminar Flow Clean Air Bench

You can tick the products you need and communicate with us in the message board.
Model External Dimension(W×D×H) Internal Work Zone(W×D×H) Rated Air Flow Air Velocity HEPA Efficiency Power Noise Power Supply LED Lamp LUX
YN-CB-001 1000*850*1500mm 900*600*600mm 1000m3/h 0.3-0.6m/s 99.99%@0.3µm 150W ≤65dB 220V/50Hz 20W*1 ≥300lux
YN-CB-002 1500*850*1500mm 1400*600*600mm 1200m3/h 0.3-0.6m/s 99.99%@0.3µm 200W ≤65dB 220V/50Hz 30W*1 ≥300lux
YN-CB-003 1000*700*1800mm 900*650*600mm 1800m3/h 0.3-0.6m/s 99.99%@0.3µm 250W ≤65dB 220V/50Hz 20W*1 ≥300lux
YN-CB-004 1500*700*1800mm 1400*650*600mm 2300m3/h 0.3-0.6m/s 99.99%@0.3µm 300W ≤65dB 220V/50Hz 30W*1 ≥300lux
Leave a Message
Model External Dimension(W×D×H) Internal Work Zone(W×D×H) Rated Air Flow Air Velocity HEPA Efficiency Power Noise Power Supply LED Lamp LUX
Product Description

Product Description:

Laminar flow clean bench is to filter out the unnecessary dust and particulate matter to a minimum, adapt to the cleanliness requirements of modern industry, photoelectric industry, biopharmaceuticals and scientific research experiments for local working areas.

The working principle: the air is sucked in by the fan, filtered through pre-filter and high-efficiency filter. The filtered clean
air can reaches Class 100 /ISO 5 cleanliness, meet the requirements of aseptic production and experiment for environmental cleanliness.





Product Feature:



1. Provides sterile work zone for aseptic techniques.


2. All models use HEPA filters (99.99% efficient at particle sizes between 0.1 to 0.3 μm).

3. Available in horizontal or vertical flow configurations.

4. All models equipped with a stainless steel work surface.





Detail Image:



Lab Laminar Air Flow Hood Clean Bench Cabinet With HEPA H14 Filter 0    Lab Laminar Air Flow Hood Clean Bench Cabinet With HEPA H14 Filter 1    Lab Laminar Air Flow Hood Clean Bench Cabinet With HEPA H14 Filter 2

Lab Laminar Air Flow Hood Clean Bench Cabinet With HEPA H14 Filter 3






Company Information:


Dongguan YANING Air Purification Equipment Manufacturing Co., Ltd. is a professional manufacturer of air purifying products.
YANING specializing in producing person/cargo Air Shower, Pass Box, Clean Bench, Fan Filter Unit (FFU), HEPA Unit
and other air cleaning equipment. We also produce G-level pri-filter, F-level medium filter, H-level HEPA filter and U-level ULPA filter.

YANING provide advanced, high quality products and perfect technical service to various industry applications, includes food, medicine,
medical products production, laboratory, semiconductor production, biochemical technology, biotechnology, precision machinery, pharmaceuticals, and operating rooms in hospitals.

YANING insists on improving purifying equipment and air filter in order to reduce the work and maintenance cost.
It let customer gain the steady efficiency and saves money, optimizing your project at the same time.

We are ISO9001:2015 certified company and our product passed CE, UL certification. YANING products are spreading throughout
Asia, Europe, America, and Africa. No matter where you are, we are always at your side. You can trust us as long-term partner:
YANING have ample products to satisfy your any demand from standard equipment and air filter to custom made purification equipment.

Lab Laminar Air Flow Hood Clean Bench Cabinet With HEPA H14 Filter 4

Production Capacity:

Product Line Production Line Capacity

Actual Units Produced
(Previous Year)

Air Shower,
Pass Box,
Clean Room,
Fan Filter Unit

Air Shower: 100 Pcs per Month;
Pass Box: 100 Pcs per Month;
Clean Room: 100 Pcs per Month;
Fan Filter Unit: 600Pcs per Month.

Air Shower: 1200Pieces;
Pass Box: 1200 Pieces;
Clean Room: 1200 Pieces;
Fan Filter Unit: 7200Pieces

Production Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
Laser Cutting Machine DN 400 2 3.0 Good
Bending Machine 100T/3200 5 5.0 Good
Welding Machine NBC-250F 16 7.0 Good
Punch Machine MASDA 1211 1 1.0 Good


PRODUCTION PROCESS:

Lab Laminar Air Flow Hood Clean Bench Cabinet With HEPA H14 Filter 5



CE CERTIFICATION:

Lab Laminar Air Flow Hood Clean Bench Cabinet With HEPA H14 Filter 6



INDUSTRY EXHIBITION:



Lab Laminar Air Flow Hood Clean Bench Cabinet With HEPA H14 Filter 7

FAQ

1. What is the main products your company is providing?
Our company specializes in purification equipment, including person/cargo Air Shower, Pass Box, Clean Bench, Fan Filter Unit (FFU), HEPA Unit
and other air cleaning equipment. We also produce G-level pri-filter, F-level medium filter, H-level HEPA filter and U-level ULPA filter.


2. Do you have customize made products?
Yes. We could customized the products according to customer’s requirement.

3. How long is the leadtime?
About 10-20 days after payment according different order qty.

4. What is the form of payment?
T/T, L/C

5. What’s the packing?
The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam,

and then fixed in the pallet or wooden box.
