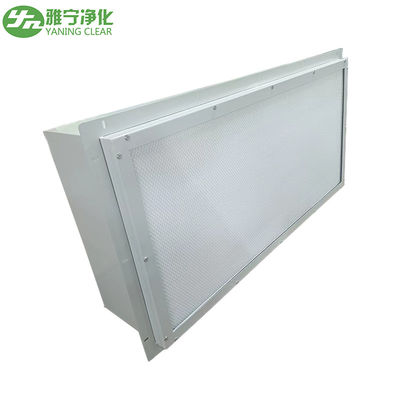

Integration FFU Cleanroom Fan Filter Units H13 - U15 Efficiency Low Noise

Place of Origin China
Brand Name YN
Certification CE/ISO
Model Number YN-FFU-1175
Minimum Order Quantity 1PCS
Price 150-300USD/unit
Packaging Details first in carton,then made wooden tray
Delivery Time 7-15 work days
Payment Terms L/C, D/A, T/T, Western Union
Supply Ability 10000pcs/month
Product Details
Product Name Cleanroom Fan Filter Units Material Powder Coat Steel/Galvanized Steel/Stainless Steel
Efficiency H13-U15 Powersupply AC Single Phase110V/ 220V 50HZ/60HZ
Size 1175*575*400mm Or Customize Hepa Size 1075*475*90mm
Air Flow 1000m3/h Loading Port Shenzhen Or Guangzhou
Structure Integration FFU Installation Method Side Mountable And Top Mountable And Hoisting
Noise Low Noise Application 100 Lab / Laboratory/ Clean Room
High Light

Integration FFU Cleanroom Fan Filter Units

,

H13 - U15 Cleanroom Fan Filter Units

,

FFU fan filter unit for clean room

You can tick the products you need and communicate with us in the message board.
Name Cleanroom Fan Filter Units
Size 1175*575*385mm
Material Galvanized sheet
Air flow 1000m³/h
Average wind velocity 0.6m/s+-20%
Power 170W
Power supply 220V/50HZ 110V/60HZ
Noise ≤65db(a)
Hepa size 1075*475
Hepa frame Aluminum alloy frame
Efficiency Hepa 99.995% 0.3um
Media Moisture-proof ultra-fine glass fiber
Leave a Message
Name Cleanroom Fan Filter Units
Product Description

Yaning New Design Integration FFU Unit BFU Cleanroom Fan Filter Units - Production Automation Corporation

Integration FFU Cleanroom Fan Filter Units H13 - U15 Efficiency Low Noise 0

FFU Standard type

  • The degree of cleanliness from class 1 up to 100,000 can be set and it can be set at individual area.

  • Because the back in the ceiling is a low-pressure area, the potential of the leakage is extremely low.

  • Bay method or through the wall method is possible by the arrangement of the layout of FFU.

  • The volume of the air flow can be set at each area.

  • Flexible increase or change of the clean room is possible by the arrangement of Fan Filter Unit.


1. Fan filter unit description

While used for a variety of critical clean air applications, the MAC 10® line of Fan Filter Units (FFUs) are ideal cleanroom solutions for the worldwide industrial market. The FFU design - a fan, motor, and filtration system all in a single unit - draws air into the unit via the filtration system and exhausts it across the filter face, supplying particle-free, laminar airflow to the room. Renowned for their ease of installation and operation, the MAC 10® line of FFUs offer low energy consumption, low sound levels, and a low profile. Note: The LE models offer low watts, low profile, and low operating costs.

2. Fan filter unit Feature
1). Low operation cost and power consumption.
2). Built in duct diversion system less noise and pressure loss .
3). Filters optional :HEPA, ULPA.
4). The fan filtration unit adopts high efficiency centrifugal fan to provide high air volume.High static pressure
conditions,working life requirements up to more than 50,000 hours.
5). Suitable for use in class Class 1-1000 clean room.
6). It is especially suitable for assembling into ultra-clean production line. It can be arranged as a single set for use according to the process requirements, or multiple sets can be connected in series to form a 100-level assembly line.

7). Before leaving the factory, the products are scanned and detected one by one with dust particle counter in accordance with the us federal standard to ensure the quality.



3. Product Parameter

MAC10® Model Original IQ LE-DC
Overall Cost
(fewer • = lower cost)
•• •••
Motor Type AC 1/5 HP / 0.15kW EC 1/2HP / 0.37kW EC 1/2HP / 0.37kW
Motor Feature Standard Motor Constant Airflow High Airflow & Pressure Range
Blower Type Forward Curve Forward Curve Backward Curve
Sound Dependent on Airflow Dependent on Airflow Dependent on Airflow
Power Consumption
(fewer • = lower consumption)
••••• •••
BMS Communications Yes Yes Yes
Standard Control Option 3 Speed, Speed controller &
ModBus® network control
ModBus® network control,
0-10V signal & manual potentiometer)
Universal Control Card
(ModBus®, 0-10V signal
& manual potentiometer)
Cabinet Styles Standard Standard/RSR/RSRE Standard/RSR/RSRE
Cabinet Construction Aluminium Aluminium Aluminium
Filter HEPA (H13) & ULPA (U15) HEPA (H13) & ULPA (U15) HEPA (H13 & H14)
ULPA (U15 & U16)



Integration FFU Cleanroom Fan Filter Units H13 - U15 Efficiency Low Noise 1Integration FFU Cleanroom Fan Filter Units H13 - U15 Efficiency Low Noise 2Integration FFU Cleanroom Fan Filter Units H13 - U15 Efficiency Low Noise 3



Company Information
Dongguan YANING Air Purification Equipment Manufacturing Co., Ltd. is a professional manufacturer of air purifying products.
YANING specializing in producing person/cargo Air Shower, Pass Box, Clean Bench, Fan Filter Unit (FFU), HEPA Unit
and other air cleaning equipment. We also produce G-level pri-filter, F-level medium filter, H-level HEPA filter and U-level ULPA filter.

YANING provide advanced, high quality products and perfect technical service to various industry applications, includes food, medicine,
medical products production, laboratory, semiconductor production, biochemical technology, biotechnology, precision machinery, pharmaceuticals, and operating rooms in hospitals.

YANING insists on improving purifying equipment and air filter in order to reduce the work and maintenance cost.
It let customer gain the steady efficiency and saves money, optimizing your project at the same time.

We are ISO9001:2015 certified company and our product passed CE, UL certification. YANING products are spreading throughout
Asia, Europe, America, and Africa. No matter where you are, we are always at your side. You can trust us as long-term partner:
YANING have ample products to satisfy your any demand from standard equipment and air filter to custom made purification equipment.

Integration FFU Cleanroom Fan Filter Units H13 - U15 Efficiency Low Noise 4

Integration FFU Cleanroom Fan Filter Units H13 - U15 Efficiency Low Noise 5Integration FFU Cleanroom Fan Filter Units H13 - U15 Efficiency Low Noise 6

Production Capacity:

Product Line Production Line Capacity Actual Units Produced
(Previous Year)
Air Shower,
Pass Box,
Clean Room,
Fan Filter Unit
Air Shower: 100 Pcs per Month;
Pass Box: 100 Pcs per Month;
Clean Room: 100 Pcs per Month;
Fan Filter Unit: 600Pcs per Month.
Air Shower: 1200Pieces;
Pass Box: 1200 Pieces;
Clean Room: 1200 Pieces;
Fan Filter Unit: 7200Pieces

Production Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
Laser Cutting Machine DN 400 2 3.0 Good
Bending Machine 100T/3200 5 5.0 Good
Welding Machine NBC-250F 16 7.0 Good
Punch Machine MASDA 1211 1 1.0 Good



Integration FFU Cleanroom Fan Filter Units H13 - U15 Efficiency Low Noise 7


CE CERTIFICATION:
Integration FFU Cleanroom Fan Filter Units H13 - U15 Efficiency Low Noise 8

Market feedback

Integration FFU Cleanroom Fan Filter Units H13 - U15 Efficiency Low Noise 9Integration FFU Cleanroom Fan Filter Units H13 - U15 Efficiency Low Noise 10
FAQ
1. What is the main products your company is providing?
Our company specializes in purification equipment, including Air shower, Pass Box, Clean Bench, Laminar Air Flow,Fan Filter Unit and so on.

2. Do you have customize made products?
Yes. We could customized the products according to customer’s requirement.

3. How long is the leadtime?
About 10-20 days after payment according different order qty.

4. What is the form of payment?
T/T, L/C

5. What’s the packing?

The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.
