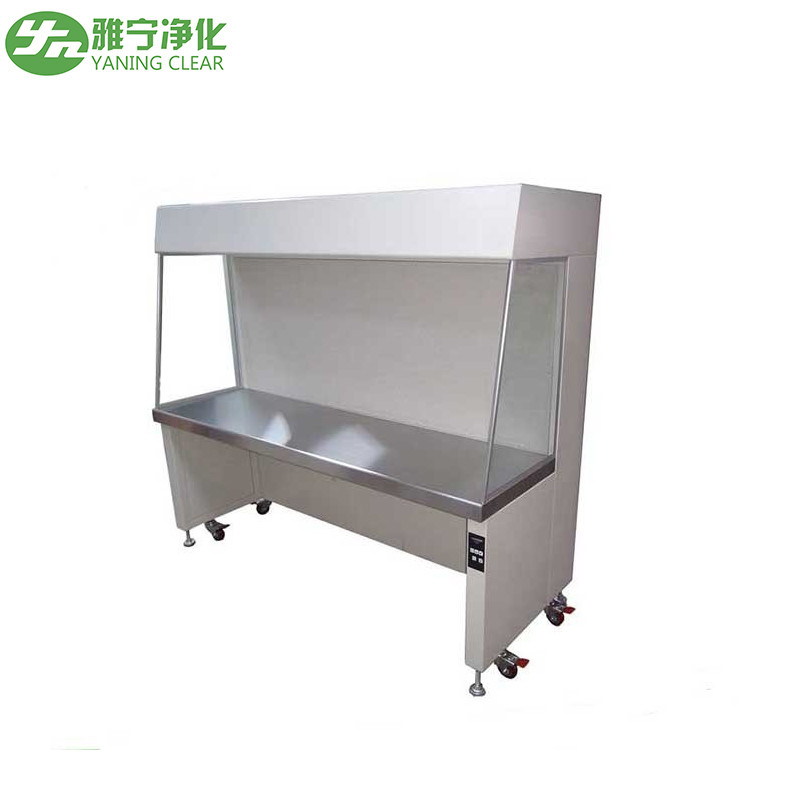

Vertical / Horizontal Laminar Air Flow Cabinet 220V 200W Laminar Clean Bench

Place of Origin China
Brand Name YANING
Certification CE ISO
Model Number YN-CBV02
Minimum Order Quantity 1PCS
Price 420
Packaging Details Carton case and wooden case
Delivery Time 8-10day
Payment Terms T/T
Supply Ability 100+PCS+25days
Product Details
(WxDxH)External Size 1200x850x1500mm (WxDxH)Work Area Size 1170x600x600mm
Cleanliness Class 100@0.3um Rate Air Flow 1200m3/h
Average Air Velocity 0.3-0.6m/s Filter Efficiency 99.99% @0.3um (H13-H14)
Power 200W Noise <65dB
Power Supply 220V/50Hz
High Light

Vertical Horizontal Laminar Air Flow Cabinet

,

220V Laminar Air Flow Cabinet

,

200W Laminar Clean Bench

Leave a Message
Product Description

Laminar air flow clean workbench

These series adopts Unidirectional vertical airflow of purifying principles, connecting centrifugal fan of low noise with electrostatic case and Mini-pleat Hepa Filter as a complete modules.

Clean bench, as a partial (vertical or horizontal ones) clean equipment, can make the working area meet purification requirement of Class 100. These series include two structures: the first one is one-piece type, the other one is bench with self-purification separator. Custom made is available.

Features:
1. Cleanliness: Class100, conformed to International standard;
2. Horizontal and open type, easy operation;
3. Adopting changeable airflow control and low noise system, to make working area keep in ideal condition;
4. Clean bench case is electrostatic powder coated plate that is shining and neat; SS304 is used as working table.
5. Material: Cold rolled steel plate with powder coated or stainless steel (SS201 or SS304).



Product Description



Model
YN-CBV01
YN-CBV02
YN-CBH01
YN-CBH02
Cleanliness class efficiency
ISO5 class/100 class (US FED 209E)
work table material
SS304
average air flow
900m3/h
1200m3/h
1500m3/h
1800m3/h
air Velocity(m/s)
0.45m/s±20%
Velocity(m/s) HEPA
99.99%@0.3um
power
AC,single phase 220V 50Hz
noise
<50db(A)
External dimension(mm)
1000X900X1460
1350X900X1460
1610X900X1460
1915X900X1460
Interal work area dimension(mm)
900X580X570
1250X580X570
1510X580X570
1815X580X570
specification and no of HEPA
915X610X69*1
1220X610X69*1
915X610X69*1 610X610X69*1
915X610X69*2
specification and no of lamp
20w*2
20w*2
40w*2
20w*2



Detailed images



Vertical / Horizontal Laminar Air Flow Cabinet 220V 200W Laminar Clean Bench 0Vertical / Horizontal Laminar Air Flow Cabinet 220V 200W Laminar Clean Bench 1



Production Progress

Vertical / Horizontal Laminar Air Flow Cabinet 220V 200W Laminar Clean Bench 2



Recommend Products

Vertical / Horizontal Laminar Air Flow Cabinet 220V 200W Laminar Clean Bench 3



Certifications

Vertical / Horizontal Laminar Air Flow Cabinet 220V 200W Laminar Clean Bench 4



Packing &Delivery

Vertical / Horizontal Laminar Air Flow Cabinet 220V 200W Laminar Clean Bench 5



Our advantage



Vertical / Horizontal Laminar Air Flow Cabinet 220V 200W Laminar Clean Bench 6



Dongguan Yaning Purificatication Equipment Co. Ltd was established in year 2011. It is located in Houjie town of Dongguan City. It is nearby Dongguan urban district with very convenient traffic access. It only takes one hour drive from our company to Shenzhen or Guangzhou airport. It is very convenient for overseas customers to visit us in a efficient way.



Our company occupy an area of 22,000 square meter with modernized office and workshop building. We are ISO 9001 certified and our major products has passed CE certification and obtained more than 20 patent. We are national certified high technology enterprise. Our Yanning brand purification equipment has won the honor “China Famous brand”.



We have been concentrating on the research and design, production, sales and installation of purification equipment and after sales services since establishment. So far , we have grown up to be one of most powerful enterprise in purification industry in south China. Our main product cover several major categories and more than one hundred model type. Our main product include air shower room for person and cargo , clean room , pass box, clean bench, fan filter unit, HEPA filter box, laminar air flow ceiling etc. Our air filter product range from primary level to medium and high efficiency level in various types. We can also construct full set clean room project for customers as per specified technical requirement. Our equipment have been widely applied in hospital, health care, electronics, medicine, food, precise instruments, aerospace, automobile manufacturing industry and so on.



We have been positioning our market both at home and abroad since establishment. We have exported our purification equipment to more than 50 countries. They are distributed in North America , Euro, South America, Middle East, Asia. We have won very good reputation from overseas market and our business is growing fast.



We sincerely hope to establish long term business partnership with all friends at home and abroad. We will work with our partner shoulder by shoulder for a more prosperous future.



Vertical / Horizontal Laminar Air Flow Cabinet 220V 200W Laminar Clean Bench 7



FAQ



Q1: What kind of pass box you make?
A: We can make pass box by customer order.

Q2: Are you really manufacturer or trading company?
A: We are indeed filter manufacturer over 10 years experiences and work with many brands for dozen years.

Q3: What price term do you accept?
A: Normally quote FOB price or CIF, others as per to customer required.

Q4: What Payment term you are running?
A: We currently do 40% deposit and 60% pay before shipping.
