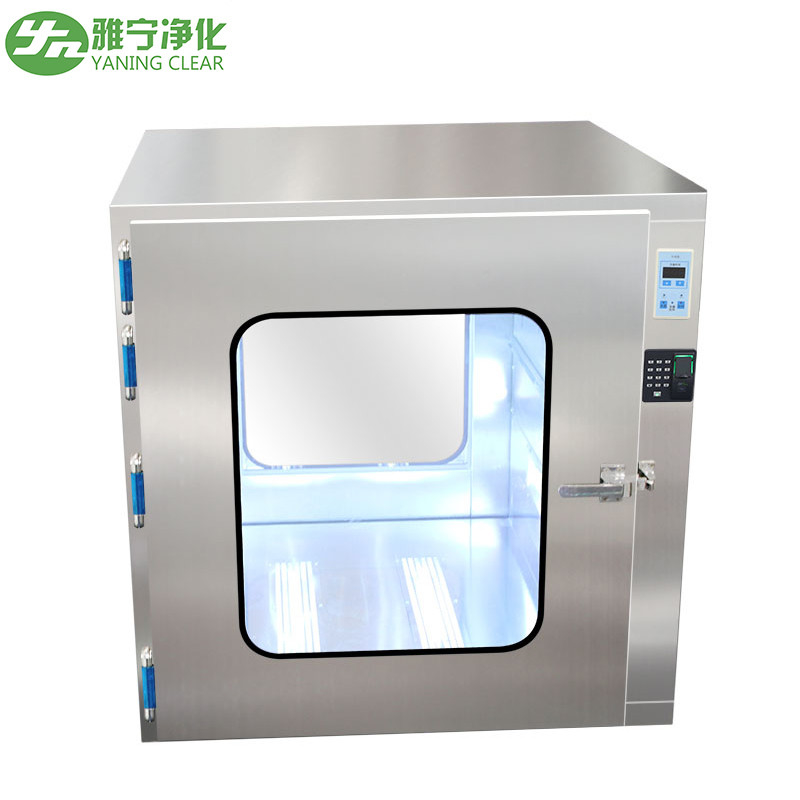

Customized Cleanroom Pass Box Sand Light Stainless Steel With Powder Coated

Name: Customized Cleanroom Pass Box Sand Light Stainless Steel With Powder Coated
Brand: Hongkong Yaning Purification industrial Co.,Limited
SKU: YN-PBW600
Price: 265.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: YANING

Certification: CE ISO

Model Number: YN-PBW600

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: USD+530+1PCS

Packaging Details: Carton case and wooden case

Delivery Time: 8-10day

Payment Terms: T/T

Supply Ability: 100+PCS+30days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Customized Cleanroom Pass Box, Powder Coated Cleanroom Pass Box, 1.0mm clean room pass through window


External Size (WxLxHmm):	760x670x730	Internal Size (WxLxHmm):	600x600x600
Cabinet Material:	Cold Rolled Steel With Powder Coated / Stainless Steel	Inside Material:	Sand Light Stainless Steel
Thickness Of Material (mm):	1.0	Power Of Electromagnetic Interlock/ UV Lamp (V/Hz):	220/50

External Size (WxLxHmm):	760x670x730
Internal Size (WxLxHmm):	600x600x600
Cabinet Material:	Cold Rolled Steel With Powder Coated / Stainless Steel
Inside Material:	Sand Light Stainless Steel
Thickness Of Material (mm):	1.0
Power Of Electromagnetic Interlock/ UV Lamp (V/Hz):	220/50

Product Description

Static Pass Box Embedded

Product Description

The air shower pass box is an auxiliary device for clean room. It is mainly used for transferring small articles between clean areas or between clean and non-clean areas. Through the pass box, the clean room door opening frequency can be reduced and the pollution of clean areas can be minimized. To reduce dust particulate caused by the goods moving in and out, the purified air from HEPA filter spay on the goods in different direction through rotary nozzle. It can get rid of dust particulate efficiently.

Configuration Option

① Material: Powder coated steel,Polish SUS 201/304/316; Mirror SUS 201/304/316 ②Power: AC 1/3N 110,220,380V/50,60Hz ③Door Type: standard external door; auto lifting door ④Lock Type: mechanical interlock, electromagnetic interlock ⑤ Others Option: sterilizer, buzzer alarm, inter phone, micro computer operation panel, conveyor

Products Description

Product Parameter
Item	Air Shower Pass Box
Model	YN-FLC-01	YN-FLC-02	YN-FLC-03
External size W×D×H(mm)	850×500×1350	950×600×1450	1150×800×1650
Internal Size W×D×H(mm)	500×500×500	600×600×600	800×800×800
Nozzle	4 Pcs	4 Pcs	6 Pcs
Air Velocity	22-27m/s	22-27m/s	22-27m/s
Noise	＜65 dB(A)	＜65 dB(A)	＜65 dB(A)
G4 Pre filter size(mm)	300×300×21×1 Pcs	400×300×21×1 Pcs	600×300×21×1 Pcs
H13 HEPA Filter(mm)	310×310×69×1 Pcs	410×410×69×1 Pcs	610×610×69×1 Pcs
Filter Efficiency	99.95%@0.3μm	99.95%@0.3μm	99.95%@0.3μm
Fan Power (W)	550W×1 Pcs	550W×1 Pcs	550W×1 Pcs
UV Power (W)	8W×1 Pcs	8W×1 Pcs	15W×1 Pcs
Lock Type	Mechanical interlock,Eletromagnetic interlock
Supply Power	AC 1/3N 220,380V/50,60Hz

Success case show

Our Factory

Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than
30,000 square meters, and an annual output value of more than 300 million RMB.

Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong

Packing&Delivery

Packaging

The product is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.

shipping

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Exhibition

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 200 people in our office.Our company and factory are located in Dongguan City, Guangdong Province, China. We welcome you to visit us at your convenience to learn about our factory and products.

2.What can you buy from us?
Air Shower, Cargo Air Shower,PVC Fast Rolling Shutter Door,HEPA Box , FFU,BFU, Pass Box, Clean Bench,Clean Booth,Operating Room ,Medical Cabinets,Laminar Flow Ceiling,Medical Scrub Sink,AIR FILTER.

3.How long is your delivery time? Normally 10-15 days for small bulk after get payment and specification confirmed, delivery is differ from different equipments and qty for bulk production.

4. What's your payment terms?
50% deposit after PI confirmed and balance 50% should be paid before shipment. If the order's total
amount below $5000, It should be paid 100% in advance.

5. Do you provide samples?
Yes, we can provide sample, but the customer should be pay sample fee and shipment cost. The sample fee
can be refund after official order placed for same models.
