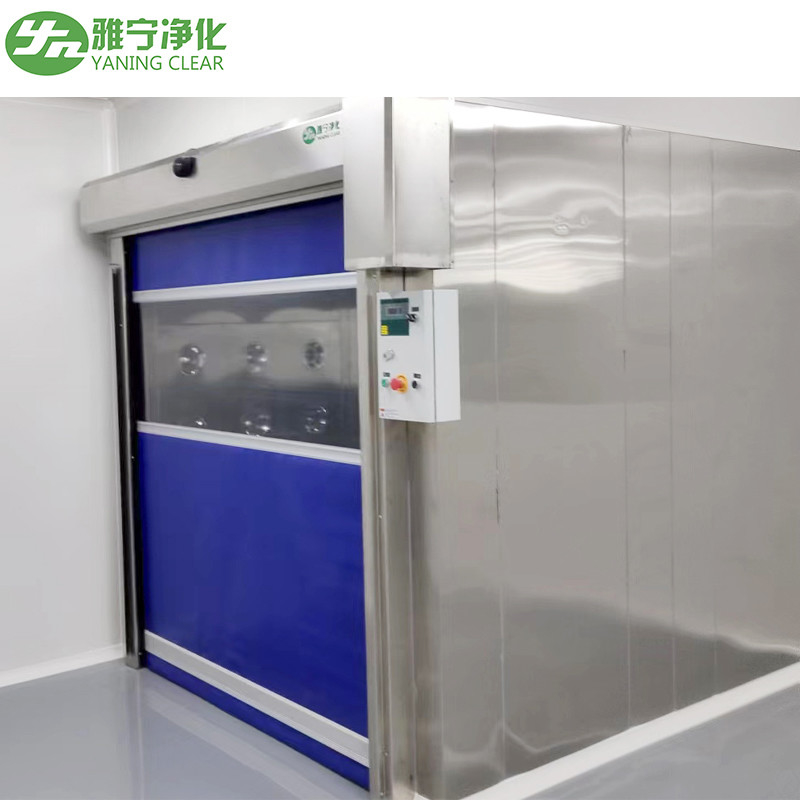

Automatic Induction Cleanroom Air Shower 27m/S Air Velocity SUS304 Stainless Steel

Place of Origin CHINA
Brand Name YANING
Certification CE ISO
Model Number YN-1500
Minimum Order Quantity 1PCS
Price USD+2200+1PCS
Packaging Details Carton case and wooden case
Delivery Time 8-10day
Payment Terms T/T
Supply Ability 40+PCS+30days
Product Details
Outside Dimension(WxDxH) 2000x1500x2180mm Inside Dimension (WxDxH) 1500x1380x1980mm
SS Nozzle 18PCS Air Velocity 22-27m/s
Noise <65 (mm)Filter Size 610x610x90x2pcs
Filter Efficiency 99.99%@0.3
High Light

Automatic Induction Cleanroom Air Shower

,

SUS304 Cleanroom Air Shower

,

27m/S Automatic Air Shower

Leave a Message
Product Description

Automatic Induction Door Person And Cargo Air Showers



Cargo air showers are frequently put to use in a variety of manufacturing environments. Cargo air showers offer a convenient and automated solution to cleaning the surfaces of work in progress or finished goods, as well as provide a buffer area between two areas of different cleanliness. Modern cargo air showers can be categorized into four main types:

(1) Manual Door Cargo Air Showers- Less common; mostly used for smaller items

(2) Automatic SWING Door Cargo Air Showers - Suitable for small trailers and/or channels that are double use for cargo and personnel

(3) Automatic SLIDING Door Cargo Air Showers - Suitable for forklifts and other large vehicles, as well as channels with high amounts of traffic

(4) Assembly Line Cargo Air Showers - Suitable for cleaning products moving along an assembly line



Automatic Induction Cleanroom Air Shower 27m/S Air Velocity SUS304 Stainless Steel 0

Automatic Induction Cleanroom Air Shower 27m/S Air Velocity SUS304 Stainless Steel 1



YN/Y Series FAST-ROLLING Door Air Shower Spec Sheet
Model YN-1500 YN-2000 YN-3000

Exterior Size

LxWxH (mm)

2500x1500x2700 2500x2000x2700 2500x3000x2700

Interior Size

LxWxH (mm)

2000x1400x2200 2000x1900x2000 2000x2900x2200
Material Available in 100% SUS304 Stainless Steel and/or High Quality 1.2 mm Cold-Rolled Steel Plate
Air Shower Time 0-99 seconds
Jet Nozzles 24 32 48
Nozzle Diameter 30 mm
Air Velocity > 25 m/s
Door Closer Dorma (German) Door Closer
Electronic Lock LCJ Electronic Lock
Filter Efficacy ≥99.995% of Particles ≥0.3μm

Filter Size

LxWxH (mm)

595 ×595×80 595 ×595×80 595 ×595×80
No. of Filters 2 4 6
Power Source 380V/50Hz (Also Available in 220V and 110V)
Lighting 1 Recessed LED 2 Recessed LED 1 Recessed LED

Fan Power

(# x Kw)

2 x 0.75 4 x 0.75 6 x 0.75
CUSTOMIZED DESIGN WELCOME.





All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.

Factory test include:

--appearance testing

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--noise testing



Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Automatic Induction Cleanroom Air Shower 27m/S Air Velocity SUS304 Stainless Steel 2







YANING Air Shower Main Features

1. Special ultra thin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle, greatly increased the space utilization and blowing tube effect.

2. High quality infrared sensor automatically showering;

2. Time for showering can be adjusted from 0 second to 99 seconds, Adopts single chip microcomputer control, LCD display working status;

3. Imported electronic interlock device, two doors can not opened at same time;

4. With G1 and H13 99.99%@0.3 micron HEPA filter to ensure the purification class;

5. Standard of the modular design, make field assembly faster and more convenient maintenance.

6. But according to user needs and site condition transformation function and form.



Automatic Induction Cleanroom Air Shower 27m/S Air Velocity SUS304 Stainless Steel 3



Automatic Induction Cleanroom Air Shower 27m/S Air Velocity SUS304 Stainless Steel 4





ABOUT US



Dongguan YANING Air Purification Equipment Manufacturing Co., Ltd. is a professional manufacturer of air purifying products. YANING specializing in producing person/cargo Air Shower, Pass Box, Clean Bench, Fan Filter Unit (FFU), HEPA Unit and other air cleaning equipment. We also produce G-level pri-filter, F-level medium filter, H-level HEPA filter and U-level ULPA filter.



YANING provide advanced, high quality products and perfect technical service to various industry applications, includes food, medicine, medical products production, laboratory, semiconductor production, biochemical technology, biotechnology, precision machinery, pharmaceuticals, and operating rooms in hospitals.

YANING insists on improving purifying equipment and air filter in order to reduce the work and maintenance cost. It let customer gain the steady efficiency and saves money, optimizing your project at the same time.



We are ISO9001:2015 certified company and our product passed CE, UL certification. YANING products are spreading throughout Asia, Europe, America, and Africa. No matter where you are, we are always at your side. You can trust us as long-term partner: YANING have ample products to satisfy your any demand from standard equipment and air filter to custom made purification equipment.



Automatic Induction Cleanroom Air Shower 27m/S Air Velocity SUS304 Stainless Steel 5





Production Capacity:

Product Line Name Production Line Capacity Actual Units Produced(Previous Year)

Air Shower,

Pass Box,

Clean Room,

Fan Filter Unit

Air Shower: 100 Pcs per Month;

Pass Box: 100 Pcs per Month;

Clean Room: 100 Pcs per Month;

Fan Filter Unit: 600Pcs per Month

Air Shower: 1200Pieces;

Pass Box: 1200 Pieces;

Clean Room: 1200 Pieces;

Fan Filter Unit: 7200Pieces

Production Machinery:

Machine Name Brand & Model No. Quantity Year(s) Used Condition
Laser Cutting Machine DN 400 2 3.0 Good
Bending Machine 100T/3200 5 5.0 Good
Welding Machine NBC-250F 16 7.0 Good
Punch Machine MASDA 1211 1 1.0 Good





Manufacturing Technique

Automatic Induction Cleanroom Air Shower 27m/S Air Velocity SUS304 Stainless Steel 6



Certifications

Automatic Induction Cleanroom Air Shower 27m/S Air Velocity SUS304 Stainless Steel 7





Exhibition

Automatic Induction Cleanroom Air Shower 27m/S Air Velocity SUS304 Stainless Steel 8



FAQ

1.How do clean room air showers work?

As workers enter the air shower, the entry door closes and powerful jets of HEPA-filtered air blow over the worker from a number of adjustable, precisely-placed nozzles. These high velocity air streams blast contaminants large and small from the worker’s cleanroom garments. Once the cycle is complete, the exit door of the self-cleaning air shower opens, and the worker moves on into the cleanroom.



2. What is the main products your company is providing?

Our company specializes in purification equipment, including Air shower, Pass Box, Clean Bench, Laminar Air Flow,Fan Filter Unit and so on.



3. Do you have custom made products?

Yes. We could customize the products according to customer’s requirement.



4. How long is the leadtime?

About 10-20 days after payment according different order qty.



5.What is the form of payment?

T/T, L/C



6. What’s the packing?

Wooden box with protective foam.
