Cleanroom Hepa Air Filter En 1822 Iso 29463 Deep Pleat

Place of Origin CHINA
Brand Name YANING
Certification CE ISO SGS
Model Number YN-HS-03
Minimum Order Quantity 1 SET
Price Reconsideration USD50.00---60.00 Set
Packaging Details The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.
Delivery Time 7 work days
Payment Terms Western Union, T/T, L/C
Supply Ability 100 units/Week
Product Details
Air Filter H14 HEPA FILTER Filter Efficiency H14, 99.995%@0.3um
Air Flow 1500 (m3/h) Air Velocity 0.45m/s
Filter Size 630*630*220mm Media Fiber Glass Filter Paper
Filter Frame Aluminum Sheet Separator Corrugated Aluminum/deep Pleat
Warranty 1 Year Initial Pressure Drop 110PA
Final Pressure Drop 400PA
High Light

deep pleat hepa air filter

,

en 1822 hepa air filter

,

deep pleat clean room hepa filters

You can tick the products you need and communicate with us in the message board.
Model Size(W*H*D)mm Airflow Volume m3/h Initial Pressure Drop Final Pressure Drop Max Temp (°C) Max RH
YN-HS-01 320*320*220 500 110 400~500 80 80%
YN-HS-02 484*484*220 1000 110 400~500 80 80%
YN-HS-03 610*610*150 1000 110 400~500 80 80%
YN-HS-04 630*630*220 1500 110 400~500 80 80%
YN-HS-05 1220*610*150 2000 110 400~500 80 80%
YN-HS-06 1260*630*220 3000 110 400~500 80 80%
Leave a Message
Model Size(W*H*D)mm Airflow Volume m3/h Initial Pressure Drop Final Pressure Drop Max Temp (°C) Max RH
Product Description

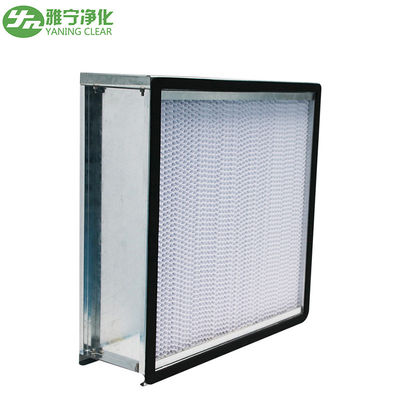

YANING 0.3 Micron Cleanroom EN 1822 ISO 29463 Deep Pleat HEPA Air Filter



Product Description:

YANING H14 filters offer HEPA-level efficiencies for final filtration in the most critical of applications, such as pharmaceutical, medical and research facilities. They can help to remove all harmful ultra-fine particles, whether chemical, biological or radioactive.

They work in existing systems that require high airflow and low pressure drop.


The fiberglass filter media is pleated for optimal airflow and best media performance. Together with aluminum foil or paper separator,

this ensures uniform pleat spacing and the ability to form a rigid self-supported media pack.

The gasket seal is a seamless polyurethane foam gasket that eliminates the risk of air bypass.



Product Feature:

* Dedicated cleanroom and cleanbench filters
* Filter classes H14, U15, U16 and U17 to EN1822:2009
* Lightweight and easy to install
* Filters for ultra clean environments
* Factory tested to meet the most stringent legal and industry requirements.
* High efficiency safeguards processes, products and workers.
* Functional reliability: leak or scan tested.





Details Images

 Cleanroom Hepa Air Filter En 1822 Iso 29463 Deep Pleat 0





Cleanroom Hepa Air Filter En 1822 Iso 29463 Deep Pleat 1

















































































Cleanroom Hepa Air Filter En 1822 Iso 29463 Deep Pleat 2









Cleanroom Hepa Air Filter En 1822 Iso 29463 Deep Pleat 3      Cleanroom Hepa Air Filter En 1822 Iso 29463 Deep Pleat 4








Company Information


Dongguan YANING Air Purification Equipment Manufacturing Co., Ltd. is a professional manufacturer of air purifying products.
YANING specializing in producing person/cargo Air Shower, Pass Box, Clean Bench, Fan Filter Unit (FFU), HEPA Unit
and other air cleaning equipment. We also produce G-level pri-filter, F-level medium filter, H-level HEPA filter and U-level ULPA filter.

YANING provide advanced, high quality products and perfect technical service to various industry applications, includes food, medicine,
medical products production, laboratory, semiconductor production, biochemical technology, biotechnology, precision machinery, pharmaceuticals, and operating rooms in hospitals.

YANING insists on improving purifying equipment and air filter in order to reduce the work and maintenance cost.
It let customer gain the steady efficiency and saves money, optimizing your project at the same time.

We are ISO9001:2015 certified company and our product passed CE, UL certification. YANING products are spreading throughout
Asia, Europe, America, and Africa. No matter where you are, we are always at your side. You can trust us as long-term partner:
YANING have ample products to satisfy your any demand from standard equipment and air filter to custom made purification equipment.

Cleanroom Hepa Air Filter En 1822 Iso 29463 Deep Pleat 5

Production Capacity:

Product Line Production Line Capacity

Actual Units Produced
(Previous Year)

Air Shower,
Pass Box,
Clean Room,
Fan Filter Unit

Air Shower: 100 Pcs per Month;
Pass Box: 100 Pcs per Month;
Clean Room: 100 Pcs per Month;
Fan Filter Unit: 600Pcs per Month.

Air Shower: 1200Pieces;
Pass Box: 1200 Pieces;
Clean Room: 1200 Pieces;
Fan Filter Unit: 7200Pieces

Production Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
Laser Cutting Machine DN 400 2 3.0 Good
Bending Machine 100T/3200 5 5.0 Good
Welding Machine NBC-250F 16 7.0 Good
Punch Machine MASDA 1211 1 1.0 Good


PRODUCTION PROCESS:

Cleanroom Hepa Air Filter En 1822 Iso 29463 Deep Pleat 6



CE CERTIFICATION:

Cleanroom Hepa Air Filter En 1822 Iso 29463 Deep Pleat 7



INDUSTRY EXHIBITION:



Cleanroom Hepa Air Filter En 1822 Iso 29463 Deep Pleat 8

FAQ

1. What is the main products your company is providing?
Our company specializes in purification equipment, including person/cargo Air Shower, Pass Box, Clean Bench, Fan Filter Unit (FFU), HEPA Unit
and other air cleaning equipment. We also produce G-level pri-filter, F-level medium filter, H-level HEPA filter and U-level ULPA filter.


2. Do you have customize made products?
Yes. We could customized the products according to customer’s requirement.

3. How long is the leadtime?
About 10-20 days after payment according different order qty.

4. What is the form of payment?
T/T, L/C

5. What’s the packing?
The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam,

and then fixed in the pallet or wooden box.
