Customized HEPA Fan Filter Unit Galvanized Stainless Steel AC EC Motor For Cleanroom

Name: Customized HEPA Fan Filter Unit Galvanized Stainless Steel AC EC Motor For Cleanroom
Brand: Hongkong Yaning Purification industrial Co.,Limited
SKU: YN-FFU
Price: 230.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Yaning

Certification: CE ISO ROHS

Model Number: YN-FFU

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: $180-$280/unit

Packaging Details: Wooden Box

Delivery Time: 10days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1000units/week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                galvanized ss hepa fan filter unit, cleanroom hepa fan filter unit, hepa fan filter ffu unit


Material1:	Aluminized Zinc Plate	Material2:	Stainless Steel Plate
Material3:	Aluminum Alloy Plate	Material4:	Powder Coating Steel
Filtration Level:	H13/H14/U15/U16	Power Supply:	110V/220V,50Hz/60Hz
Current:	AC/EC	Air Volume:	500/1000/1500/2000m³

Material1:	Aluminized Zinc Plate
Material2:	Stainless Steel Plate
Material3:	Aluminum Alloy Plate
Material4:	Powder Coating Steel
Filtration Level:	H13/H14/U15/U16
Power Supply:	110V/220V,50Hz/60Hz
Current:	AC/EC
Air Volume:	500/1000/1500/2000m³

Product Description

Description

Click to Download Catalog: FFU Catalog.pdf

The fan filter unit (FFU) is an air self-cleaning device that can be mounted on a ceiling or placed on a stand to achieve a local level of 100.

It can also be used to supply air at the end of a clean room. The product is equipped with an primary efficiency and high-efficiency two-stage filtration device. The fan sucks in air from the top and filters it with pre filter and hepa filter. The filtered clean air is sent out through the air outlet. There are two types of mounting methods: hanging and floor stand.

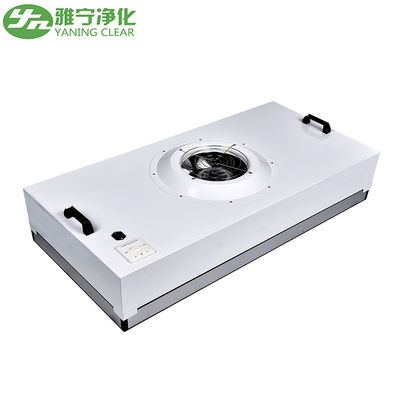

Customized HEPA Fan Filter Unit Galvanized Stainless Steel AC EC Motor For Cleanroom 0

Parameters

Model	YN-FFU-A01	YN-FFU-A02	YN-FFU-A03	YN-FFU-1175*2	YN-FFU-1475
Body Size(mm)	575575230	5751175230	8751175230	11751175230	7251475230
Filter Size(mm)	57057059	570570*69	870117069	1170117069	720147069
Air Filter	5-8cmm 500m³/h	12-16cmm 1000m³/h	19-25cmm 1500m³/h	21-34cmm 2000m³/h	19-26cmm 1500m³/h
Noise(dB)	48-54	48-54	50-56	52-58	50-56
Fan Full Pressure(pa)	210	210	220	230	220
Power(w)	170	170	210	275	210
Weight(kg)	28	35	47	55	50
Material	Powder Coating Steel/ Galvanized Plate/ Stainless Steel 304
Power Supply	AC/EC 1N 110V/220V 50Hz/60Hz
Control System	3 stage regulation, group reguation
Filter Efficency	99.95%MPPS above H13-U16@EN1822
Pre Filter	G3/G4 Filter, nylon filter
Work Status	Power Indicator, Work Indicator, Error Indicator
Connection Type	3 Pin Aviation Male Female Socket, Terminat Blocks
Overload Protection	Overload portect of motor and controller
Monitor Contact Communication Method	AC: Port of reserve and Erro EC: R485 TCP

Material Classification
Aluminium zinc plate	Stainless steel plate
Aluminum alloy plate	Powder coating steel
Rotor Classification
Internal rotor fan	External rotor fan
Current Classification
AC fan	EC fan
DC fan
System Classification
AC in-situ control	AC PC control system
EC PC control system	DC PC control system
Filter Level Classification
99.95%@0.3μm(H13)	99.995%@0.3μm(H14)
99.9995%@0.12μm(U15)	99.99995%@0.12μm(U16)

Features

1. FFU is made of cold-rolled steel plate sprayed or made of stainless steel, compact structure and beautiful appearance;

2. Using direct-drive high efficiency centrifugal fan, with long life, low noise, maintenance-free, small vibration, adjustable speed;

3. Suitable for assembly into ultra-clean production lines, according to the process layout for a single use, can also be more than one series to form 100 assembly line.
