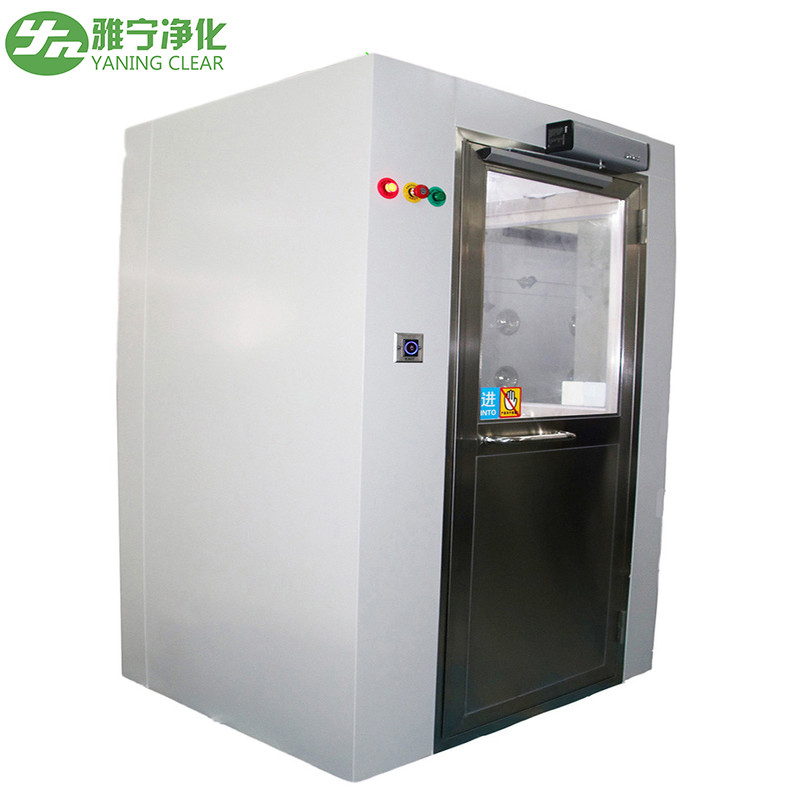

YANING Cleanroom GMP Air Shower With Face Recognition Interlock Door Air Cleaning

Product Details

Place of Origin: CHINA

Brand Name: YANING

Certification: CE ISO SGS

Model Number: YN-AS1290/1

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Reconsideration

Packaging Details: standard export packaging

Delivery Time: 7 work days

Payment Terms: Western Union, T/T, L/C

Supply Ability: 100 units/Week

Get Best Price
Product Details
Highlight:

Cleanroom Air Shower 1105W

,

HEPA Filter Cleanroom Air Shower

,

SS304 Cleanroom Booth

Material::
Stainless Steel
Air Speed::
25m/s
Power::
1105W
Blow Mode:
2 Side Left / Right
Prefilter:
G4
Material::
Stainless Steel
Air Speed::
25m/s
Power::
1105W
Blow Mode:
2 Side Left / Right
Prefilter:
G4
Product Description

YANING Cleanroom GMP Air Shower with Face Recognition Interlock Door Air Cleaning



Product Description:

The air shower is a necessary passage for people to enter the clean room, which can effectively reduce the pollution problems

caused by people entering and leaving the clean room.

The YANING automatic high-tech intelligent air shower room has a voice prompt system, and the full-automatic voice prompt

during the blowing process allows people to complete the entire blowing and dust removal process in an orderly manner.

Use LCD to display the air shower time, the air shower time is adjustable from 0S to 99S.



Product Parameters

Product Name Single Person
Double Blow
Two Person
Double Blow
Three Person
Double Blow
Air shower Tunnel
Product Model YN-FLS-01 YN-FLS-02 YN-FLS-03 YN-FLS-04
Outside DimensionsW×D×H(mm) 1290×1000×2130 1290×1500×2130 1290×2000×2130 1290×3000×2130
Internal Size W×D×H(mm) 790×880×1925 790×1380×1925 790×1880×1925 790×2880×1925
Suitable Person 1-2 Person 2-3 Person 3-4 Person 4-5 Person
Nozzle 12 Pcs 18Pcs 24 Pcs 36 Pcs
Air Velocity 22-27m/s 22-27m/s 22-27m/s 22-27m/s
Noise <65 dB(A) <65 dB(A) <65 dB(A) <65 dB(A)
G4 Pre filter size(mm) 745×375×21×1 Pcs 900×375×21×2 Pcs 745×375×21×2 Pcs 745×375×21×3 Pcs
H13 Hepa filter size(mm) 610×610×69×1 Pcs 610×610×69×2 Pcs 610×610×69×2 Pcs 610×610×69×3 Pcs
Filter Efficiency 99.95%@0.3μm 99.95%@0.3μm 99.95%@0.3μm 99.95%@0.3μm
Fan Power(W) 1100W×1 Pcs 750W×2 Pcs 1100W×2 Pcs 1100W×3 Pcs
LED Lamp Power(W) 15W×1 Pcs 15W×1 Pcs 15W×2 Pcs 15W×3 Pcs
Power Supply Three-phase,380V/50Hz





Configuration Options

1.According to the material requirements:
Powder coated steel, Polish SUS 201/304/316;
Mirror SUS 201/304/316
2.According to power supply requirements:
voltage 220V/380V, frequency 50Hz/60Hz. Number
of phases: single-phase / three-phase;
3.According to the requirements of blowing:
single blow, top blow, double blow, three blow;
4.According to the number of people:
single person, double person,multiple people.
5.According to the door requirements:
manual doors,automatic 90 degree doors, sliding doors,
fast rolling shutter doors. curtain doors, no doors, etc.
6.According to the requirements of use:
manual door, automatic door, S type, L type,
three-doors air shower, bufferroom, etc.



Features of Cleanroom Air Shower

  1. Photoelectric sensor, automatic adjustable blowing time (0-99 min), touch panel and timer with LED display.
  2. Double doors with mechanical or electric interlock.
  3. HEPA filter,Material stainless steel 304, anti-static
  4. Auto, Stop, Manual, Emergency Stop function
  5. Interior fluorescent lamp and flush windows
  6. A powder failure safety function,Circulation wind,EVA seal
  7. Modular design, easy for transportation
  8. Customer sizes are possible
