Product Details
Place of Origin: China
Brand Name: Yaning
Certification: CE
Model Number: YN-CAS01
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: USD+1600-2100+unit
Packaging Details: The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.
Delivery Time: 8-15days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 3000+unit+per month

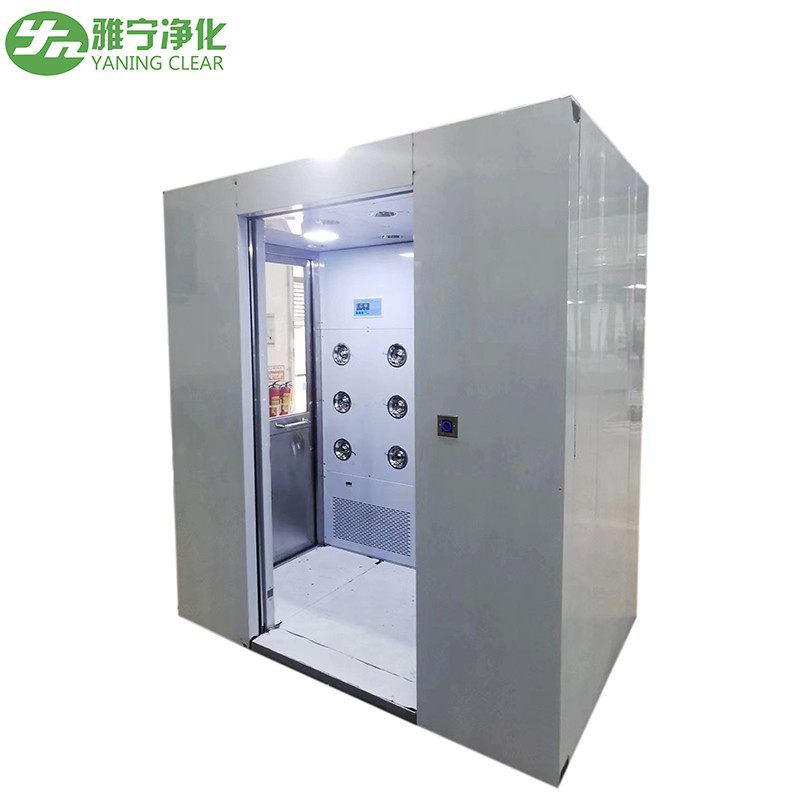

Product Name:: |
Cargo Air Shower |
Outside Dimension(L*W*H):: |
2000*1000*2130mm |
Internal Dimension(L*W*H):: |
1500*880*1980mm |
Material:: |
Stainless Steel, Powder Coated Plate |
Number Of Nozzles:: |
Customized |
Efficiency:: |
99.99%@0.3 |
Blowing Mode:: |
Left And Right 2 Sides |
Noise:: |
<65dB |
Air Shower Time:: |
0-99s Adjustable |
Air Velocity: |
22-27 M/s |
Product Name:: |
Cargo Air Shower |
Outside Dimension(L*W*H):: |
2000*1000*2130mm |
Internal Dimension(L*W*H):: |
1500*880*1980mm |
Material:: |
Stainless Steel, Powder Coated Plate |
Number Of Nozzles:: |
Customized |
Efficiency:: |
99.99%@0.3 |
Blowing Mode:: |
Left And Right 2 Sides |
Noise:: |
<65dB |
Air Shower Time:: |
0-99s Adjustable |
Air Velocity: |
22-27 M/s |
Product Details:
| Product Parameter Power Supply: Three-phase,380V/50Hz | ||||
| Product Name | Cargo Air Shower | Cargo Air Shower | ||
| Product Model | YN-HLS-01 | YN-HLS-02 | YN-HLS-03 | YN-HLS-04 |
| Outside Dimensions WxDxH(mm) | 2000x1000x2130 | 2000x1500x2130 | 2000x2000x2130 | 2000x3000x2130 |
| Internal Size WxDxH(mm) | 1500x880x1980 | 1500x1380x1980 | 1500x1880x1980 | 1500x2880x1980 |
| Fan Power(W) | 550Wx2pcs | 750Wx2pcs | 550Wx4pcs | 550Wx6pcs |
| Nozzle | 12 pcs | 18 pcs | 24 pcs | 36 pcs |
| G4 Pre Filter Size(mm) | 745x375x21x2pcs | 900x375x21x2pcs | 745x375x21x4pcs | 745x375x21x6pcs |
| H13 HEPA Filter Size(mm) | 610x610x69x2pcs | 610x610x69x2pcs | 610x610x69x4pcs | 610x610x69x6pcs |
Product Pictures detail:
Certificate:
Our Factory:
Dongguan Yaning Purificatication Equipment Co. Ltd was established in year 2011. It is located in Houjie town of Dongguan City. It is nearby Dongguan urban district with very convenient traffic access. It only takes one hour drive from our company to Shenzhen or Guangzhou airport. It is very convenient for overseas customers to visit us in a efficient way.
Our company occupy an area of 22,000 square meter with modernized office and workshop building. We are ISO 9001 certified and our major products has passed CE certification and obtained more than 20 patent. We are national certified high technology enterprise. Our Yaning brand purification equipment has won the honor "China Famous brand".
