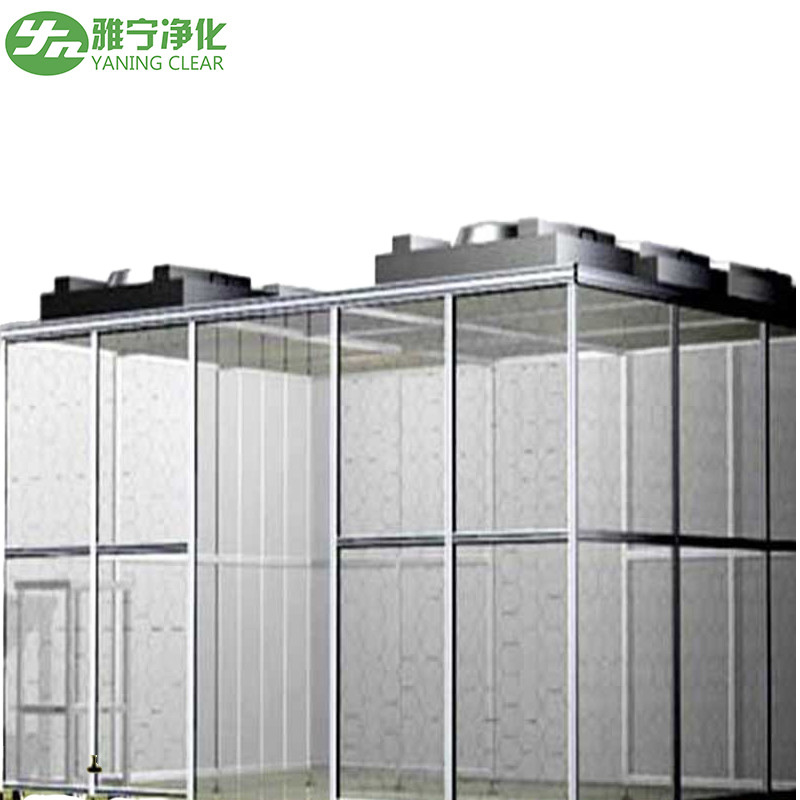

Diy Modular Cleanrooms Environment With Antistatic Curtain

Product Details

Place of Origin: China

Brand Name: Yaning

Certification: CE/ISO/UL/FDA

Model Number: YN-CR2000

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: 1000-2000USD/unit

Packaging Details: First in carton,then made wooden tray or as your requirement

Delivery Time: 7-15 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000units/month

Get Best Price
Product Details
High Light:

fan filter unit modular cleanrooms

,

diy modular cleanrooms

,

antistatic curtain modular clean room

Name:
Mobile Clean Room
Purification Levels:
Class 100(ISO 5) Class 1000(ISO6) Class 10000(ISO7)
Material::
Aluminium Alloy Square 50*50mm
Soft Wall::
Antistatic Curtain
FFU Power::
220V/50HZ 110V/60HZ 380V/50HZ
Terms::
CIF/EXW/FOB
Delivery Time::
7-15days
LED::
40W*3pcs
Name:
Mobile Clean Room
Purification Levels:
Class 100(ISO 5) Class 1000(ISO6) Class 10000(ISO7)
Material::
Aluminium Alloy Square 50*50mm
Soft Wall::
Antistatic Curtain
FFU Power::
220V/50HZ 110V/60HZ 380V/50HZ
Terms::
CIF/EXW/FOB
Delivery Time::
7-15days
LED::
40W*3pcs
Product Description

Yaning Antistatic Curtain Mobile Small Clean Room Booth DIY Clean Room Environment



Product Description:


Clean booth is a kind of air purifying equipment providing partial high clean environment. It's the easiest and fastest way to build a simple clean room. Equipment with a lot of clean level and space collocation, it can be designed as request. Main characteristics: Simple use, good flexibility, easy installation, short construction time, and movable. It can be installed in part of clean room of general level which requires high cleaning to save cost.

FEATURES:
1. The configuration of the clean shed frame: The excellent 10,000-class clean shed is made of industrial aluminum as the frame, which has the characteristics of stability, beauty, no rust and no dust;
2, the configuration of the anti-static drape of the clean shed: excellent net 10,000-class clean shed surrounded by anti-static drape or tempered glass, with anti-static effect, high transparency, good flexibility, no deformation, not easy to age;
3, clean shed fan filter unit FFU configuration: excellent net 10,000 class clean shed using Singapore PCI direct drive centrifugal fan, with long life, low noise, maintenance-free, small vibration, three-speed speed control, etc. Reliable quality, working life of more than 50,000 hours; plus a unique air duct design, greatly improving the efficiency of the fan and reducing noise! The internal purification level can reach 100-100K level;
4, excellent net 10,000 level clean shed is suitable for areas with high requirements for local purification level in the workshop, such as assembly line operation area.
5, excellent net million clean shed modular structure: easy to improve purification level, strong scalability, and high reuse value;
6, excellent net million level clean shed mobile.

Our regular size of clean room Parameter

Model YN-CS-23B YN-CS-34A YN-CS-68C

(W×L×H)mm
External Dimension

2100×3100×2500 3100×4100×2500 6100×8100×2500

(W×L×H)mm
Internal Work Zone

2000×3000×2200 3000×4000×2200 6000×8000×2200
Clean Class Level 1000Class(ISO6) 100Class(ISO5) 10000Class(ISO7)
Air Velocity 0.3-0.5m/s 0.3-0.5m/s 0.3-0.5m/s
Noise ≤65dB ≤65dB ≤65dB
Vibration Half Peak ≤5um ≤5um ≤5um
Light 40W×2 40W×4 40W×8
Power Supply 220V/50Hz 220V/50Hz 220V/50Hz
Material

Framework: Epoxy powder coated steel/ Stainless steel/Aluminum
Wall: Anti-static strip curtain/Soft air curtain/Plexiglas




























Detail pictures
Diy Modular Cleanrooms Environment With Antistatic Curtain 0Diy Modular Cleanrooms Environment With Antistatic Curtain 1Diy Modular Cleanrooms Environment With Antistatic Curtain 2
Application:

Diy Modular Cleanrooms Environment With Antistatic Curtain 3

As a pioneer in cleanroom technology, Yaning has been creating controlled environments for the electronics, semiconductor, pharmaceutical, food, biotechnology, nanotechnology and other high technology indutries. Today, increasing quality and process demands in these and other industries require the control of particulate contamination to stringent standards.
Yaning Soft Capsule Soft Wall Cleanrooms are an ideal solution when clean air areas need to be created on a small to mid scale. Flexible and economical, they may be easily relocated when application requirements change. Yaning offers a complete range of soft wall cleanrooms to meet various construction, dimensional and cleanliness class requirements.

Diy Modular Cleanrooms Environment With Antistatic Curtain 4
