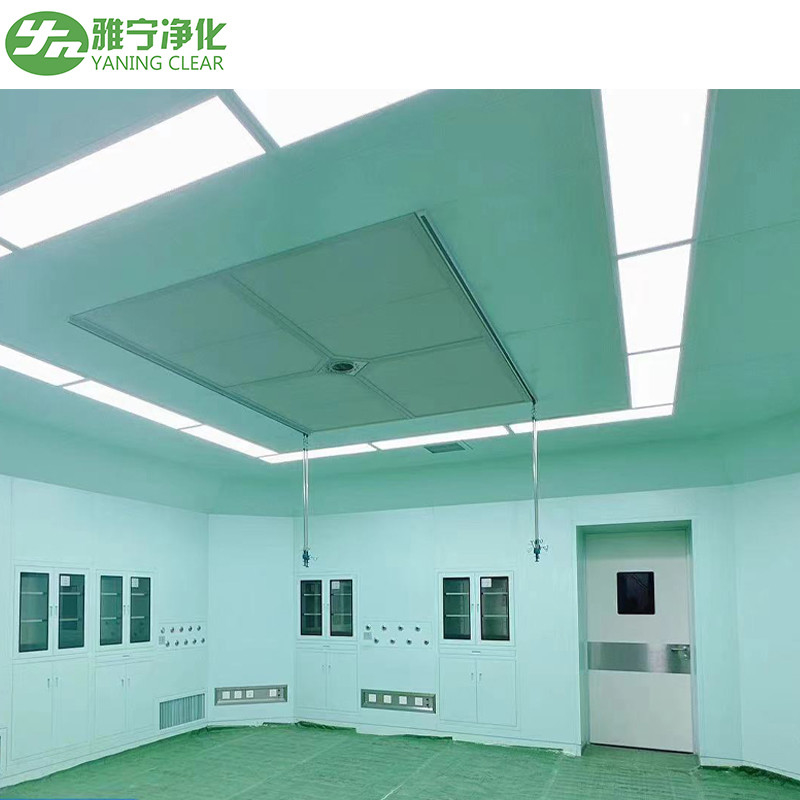

Comprehensive Operating Room Packages – All-in-One Solutions for Modern Hospitals

Name: Comprehensive Operating Room Packages – All-in-One Solutions for Modern Hospitals
Brand: Hongkong Yaning Purification industrial Co.,Limited
SKU: YN-OTR
Price: 15000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YANING

Certification: CE

Model Number: YN-OTR

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: 15000USD/SET

Packaging Details: Wooden box

Delivery Time: 15-25 days

Payment Terms: EXW/FOB/CIF

Supply Ability: 100 sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                modular plug and play operating room, expandable plug and play operating room


Product Name:	Modular Operating Room	Size:	600060003000mm Or Customized
Control Panel:	Digital Control Touch Screen 27" LCD	Auto Hermetic Door:	15002100mm 1set
Laminar Flow Ceiling:	26002400400mm * 1set	Medical Cabinet:	W900H1700D350mm * 2pcs
Safety Features:	Anti-slip, Anti-corrosion, Antibacterial	Warranty:	1 Year

Product Name:	Modular Operating Room
Size:	600060003000mm Or Customized
Control Panel:	Digital Control Touch Screen 27" LCD
Auto Hermetic Door:	15002100mm 1set
Laminar Flow Ceiling:	26002400400mm * 1set
Medical Cabinet:	W900H1700D350mm * 2pcs
Safety Features:	Anti-slip, Anti-corrosion, Antibacterial
Warranty:	1 Year

Product Description

Operating Room Engineering

Dongguan Yaning Purification Equipment Co., Ltd Limited provides one-stop service in clean room such as hospital operating room, ICU, ward,pharmaceuticals,bio-lab and so on. We provide all process from design, manufacturing, installation to after-sales service. The whole project contains the following parts.

Operation Room Classification

(1) Class I operating room: the sterile clean operating room, which mainly accepts operations such as brain, heart, and organ transplants.

(2) Class II operating room: the sterile operating room, which mainly accepts aseptic operations such as splenectomy,
open reduction of closed fractures, intraocular surgery, and thyroidectomy.
(3) Class III operating room: that is, the operating room with bacteria, which accepts operations on stomach, gallbladder, liver, appendix, kidney, lung and other parts.
(4) Category IV operating room: the infection operating room, which mainly accepts surgery for appendix perforation, peritonitis, tuberculous abscess, abscess incision and drainage.
(5) Category V operating room: the special infection operating room, which mainly acceptsthe operation of Pseudomonas aeruginosa, gangrene bacillus, tetanus and other infections. According to different specialties, the operating rooms can be divided into general surgery, orthopedics, obstetrics and gynecology, brain surgery, cardiothoracic surgery, urology, burns, and ENT surgery.

Cleanliness

The cleanliness grade of hospital clean room is generally divided into class100, class1000, class10000, class100000 etc.

Product Parameter

Cleanliness grade	Maximum particles/m3						FED STD 209E	Application of surgery
	≥0.1 μm	≥0.2 μm	≥0.3 μm	≥0.5 μm	≥1 μm	≥5 μm	~	~
ISO 5	100,000	23,700	10,200	3,520	3,520	832	class 100	Joint replacement, neurosurgery, heart surgery
ISO 6	1,000,000	237,000	102,000	35,200	35,200	293	class 1,000	Orthopedics, General Surgery, Plastic Surgery
ISO 7	c	c	c	352,000	83,200	2,930	class 10,000	Thoracic surgery, ENT, urological surgery and general surgery

Details Images

peration Room Panels Traditional Spraying board

New Environmental Laminated board

Sample Drawing

Operation Room Panel Advantage

We adopt new type of laminated board, which we get patent in China, compared with old spraying board material,
the laminated board with advantage of:

	Traditional Spraying board	New Environmental Laminated board
Feature	1.easy to scratch 2.easy to discolor(yellowing after1.5 years) 3.disposable 4. difficult to clean and maintain	1. can't be scratched by cart or sharp items 2. dust-proof and Antibacterial 3. quick assemble and can be move to different place to reassemble 4. easy to disassembly 5. easy to clean 6. no fingerprint
Production time	10 days	7 day
Installation time	15-20 days	3-5 days
Work life	2 years	10 years
Others	normal material	we get paten in 2018

PVC filmed steel wall panel

Function as below :
1. Anti-scratch 2. dust-proof and Antibacterial
3. quick assemble and movable
4. easy to clean
5. no fingerprint
6. Long work life, no color fade
7. Easy to install

Laminar flow ceiling

Function as below :
1. Material: Electrolytic plate, cold plate spray, stainless steel production.2. Size: according to cleanliness request.100-10000
class.
3. Technics: Paint electrolytic steel plate,Polymer coated electrolytic steel plate.
4. High efficiency filter: include H14

Anesthesia Cabinet

Medicine Cabinet

Instrument Cabinet

Medical cabinets can be used by medical staff. According to the reasonable regulations of sorting and management classification, all items can be stored in designated medical cabinets. The material is 0.8mm -1.2mm thick SUS304 stainless steel. The structure is firm, eliminating dead ends, easy to clean, easy to use and beautiful in appearance.

Control panel

Function as below : 1. Turn ON or OFF the system power2. Main Interface.
3. Air conditioning system.
4. System parameter setting interface.
5. Background music / MP3 interface.
6. Telephone interface.
7. Easy dial interface.
8. Medical gas interface.
9. Centralized control screen.

Other equipment in the operation room

Writing table Socket box Gas terminal X-ray film viewer

Success case show

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 200 people in our office.Our company and factory are located in Dongguan City, Guangdong Province, China. We welcome you to visit us at your convenience to learn about our factory and products.

2.What can you buy from us?
Air Shower, Cargo Air Shower,PVC Fast Rolling Shutter Door,HEPA Box , FFU,BFU, Pass Box, Clean Bench,Clean Booth,Operating Room ,Medical Cabinets,Laminar Flow Ceiling,Medical Scrub Sink,AIR FILTER.

3.How long is your delivery time?

Normally 10-15 days for small bulk after get payment and specification confirmed, delivery is differ from different equipments and qty for bulk production.

4. What's your payment terms?
50% deposit after PI confirmed and balance 50% should be paid before shipment. If the order's total amount below $5000, It should be paid 100% in advance.

5. Do you provide samples?

Yes, we can provide sample, but the customer should be pay sample fee and shipment cost. The sample fee
can be refund after official order placed for same models.
