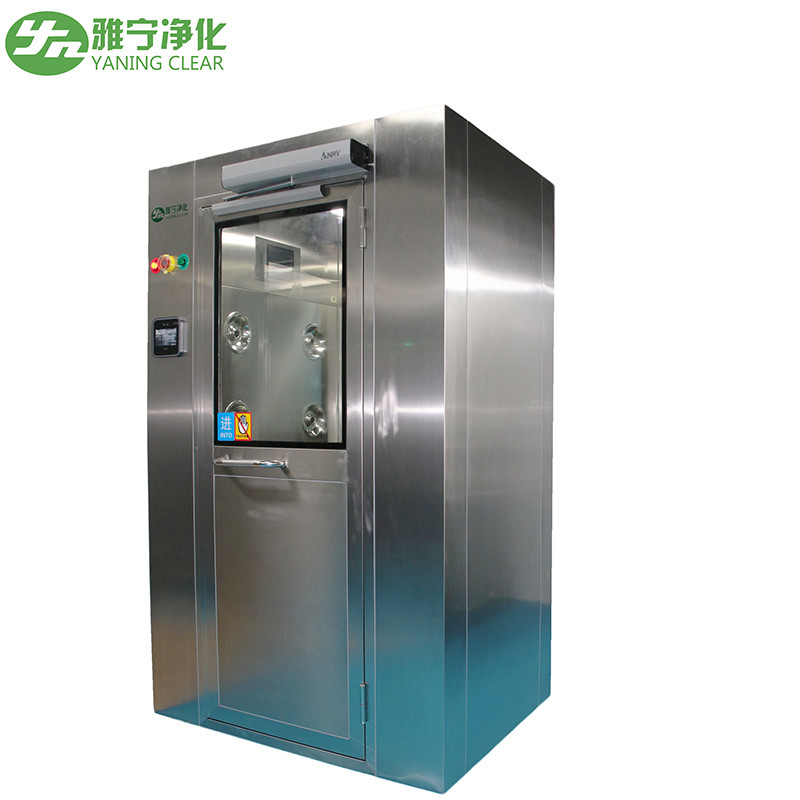

Plc 1 Year Air Shower In Pharmaceutical Industry

Name: Plc 1 Year Air Shower In Pharmaceutical Industry
Brand: Hongkong Yaning Purification industrial Co.,Limited
SKU: yaning
Price: 1500 USD
Availability: InStock

Product Details

Place of Origin: guandong

Brand Name: YN

Certification: ISO\ce

Model Number: yaning

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: 1500$

Packaging Details: 7

Delivery Time: 10-15day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                plc air shower in pharmaceutical industry, 220v air shower in pharmaceutical industry, pharmaceutical industry cleanroom air shower


Humidity Range:	20-90% RH	Lighting:	LED
Power Supply:	220V/50Hz	Control System:	PLC
Air Flow:	Vertical/Horizontal	Air Velocity:	20-25 M/s
Material:	Stainless Steel	Temperature Range:	5-45°C

Humidity Range:	20-90% RH
Lighting:	LED
Power Supply:	220V/50Hz
Control System:	PLC
Air Flow:	Vertical/Horizontal
Air Velocity:	20-25 M/s
Material:	Stainless Steel
Temperature Range:	5-45°C

Product Description

Air Shower

①G4 pre filter and H13 HEPA filter, 2-stage filtration. Ensure purification level.

②Fully automatic infrared induction blowing.

③Equipped with 360-degree adjustable stainless .steel nozzle.Left and right sides blowing shower,large air volume and low noise centrifugal fan.The air velocity of the nozzle can reach 22-27m/s.

④Adopt LCD time display, air shower time is adjustable from 0-99S, show the completion time of air shower, with humanized voice prompts.

⑤According to the needs of the site, customize the door direction.

Product Description

The air shower is a necessary passage for people to enter the clean room,which can reduce the pollution caused by people entering and leaving the clean room. It is a kind of local purification equipment with strong versatility, which is installed between the clean room and the non-clean room. When personnel want to enter the clean area, they need to be showered through the air shower. The clean air blown out can remove the dust carried by the personnel, and can effectively block and reduce the dust source from entering the clean area. At the same time, the front and rear doors are electronically interlocked, which can also act as an airlock to control the outside polluted air entering the clean area. This equipment is widely used in biological laboratories, pharmaceutical factories, hospitals, food processing, electronics factories, painting and other air purification places. Our company produces a fully automatic high-tech intelligent air shower room with a voice prompt system. When people enter the air shower, the automatic voice system prompts people to complete the entire process of blowing, showering and dust removal in an orderly manner. Humanized voice prompts give people a kind of cordial feeling, and achieve an effective purification effect.

Configuration Options

According to the material requirements: Powder coated steel, Polish SUS 201/304/316; Mirror SUS 201/304/316
According to powersupply requirements: voltage 220V/380V, frequency 50Hz/60Hz. Number of phases: single-phase / three-phase; 3.According to therequirements of blowing: single blow, top blow, double blow, three blow; 4.According to the number of people:
single person,double person,multiple people. 5.According to the door requirements: manual doors,automatic 90 degree doors, sliding doors, fastrolling shutter doors. curtain doors, no doors, etc.
According to the requirements of use: manual door, automatic door, S type,L type,three-doors air shower, bufferroom, etc.

Products Description

Powder coated steel Air shower

Stainless steel Air shower

Product Parameters
Product Name	Single Person Double Blow	Two Person Double Blow	Three Person Double Blow	Air shower Tunnel
Product Model	YN-FLS-01	YN-FLS-02	YN-FLS-03	YN-FLS-04
Outside DimensionsW×D×H(mm)	1290×1000×2130	1290×1500×2130	1290×2000×2130	1290×3000×2130
Internal Size W×D×H(mm)	790×880×1925	790×1380×1925	790×1880×1925	790×2880×1925
Suitable Person	1-2 Person	2-3 Person	3-4 Person	4-5 Person
Nozzle	12 Pcs	18 Pcs	24 Pcs	36 Pcs
Air Velocity	22-27m/s	22-27m/s	22-27m/s	22-27m/s
Noise	＜65 dB (A)	＜65 dB (A)	＜65 dB (A)	＜65 dB (A)
G4 Pre filter size(mm)	745×375×21×2 Pcs	900×375×21×2 Pcs	745×375×21×2 Pcs	745×375×21×3 Pcs
H13 Hepa filter size(mm)	610×610×69×1 Pcs	610×610×69×2 Pcs	610×610×69×2 Pcs	610×610×69×3 Pcs
Filter Efficiency	99.95%@0.3μm	99.95%@0.3μm	99.95%@0.3μm	99.95%@0.3μm
Fan Power(W)	1100W×1 Pcs	750W×2 Pcs	1100W×2 Pcs	1100W×3 Pcs
LED Lamp Power(W)	15W×1 Pcs	15W×1 Pcs	15W×2 Pcs	15W×3 Pcs
Power Supply		Three-phase,380V/50Hz

Single Person Double Blow
Outside Dimensions W×D×H(mm)	1290×1000×2130
Internal Size W×D×H(mm)	790×880×1925
Nozzle	12 Pcs
Fan Power(W)	1100W×1 Pcs

Two Person Double Blow
Outside Dimensions W×D×H(mm)	790×880×1925
Internal Size W×D×H(mm)	790×1380×1925
Nozzle	18 Pcs
Fan Power(W)	750W×2 Pcs

Three Person Double Blow
Outside Dimensions W×D×H(mm)	1290×2000×2130
Internal Size W×D×H(mm)	790×1880×1925
Nozzle	24 Pcs
Fan Power(W)	1100W×2 Pcs

Air shower Tunnel
Outside Dimensions W×D×H(mm)	1290×3000×2130
Internal Size W×D×H(mm)	790×2880×1925
Nozzle	36 Pcs
Fan Power(W)	1100W×3 Pcs

Detail Image

Success case show

Our Factory

Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than 30,000 square meters, and an annual output value of more than 300 million RMB.

Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and
has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong

Packing&Delivery

Packaging

The product is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.
