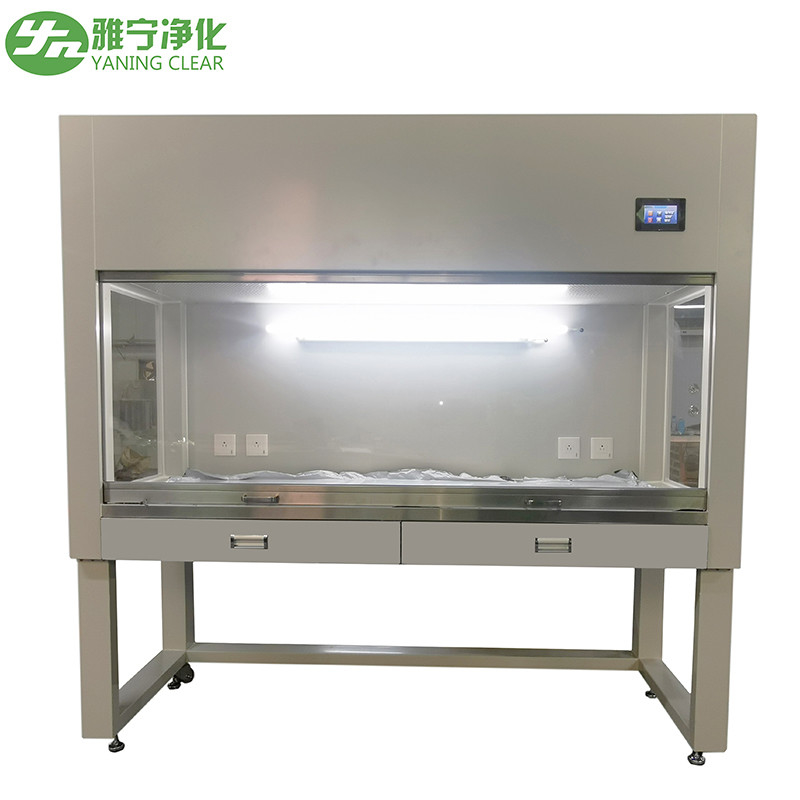

Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz

Product Details

Place of Origin: China

Brand Name: YN

Certification: CE,ISO9001

Model Number: YN-CZT/YN-SPT

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: usd/750~900/1pc

Packaging Details: International standard shipping specifications

Delivery Time: 7~10work day

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10pcs/15day

Get Best Price
Product Details
High Light:

cleanroom cleaning horizontal laminar flow hood

,

220v50hz cleaning horizontal laminar flow hood

,

laminar bench 220v 50hz

Material For Cabinet:
Cold Rolled Steel Or Stainless Steel 304
Material For Work Table:
Stainless Steel 304
Purification Rank:
100 Clean Class, ISO 5
Power Supply:
220V 50Hz
HEPA Filter Efficiency:
H13, 99.99% At 0.3um
Certification:
CE,ROHS,ISO9001,ISO14001
Verage Velocity:
0.3~0.5 M/s
Noise:
<65dB
Material For Cabinet:
Cold Rolled Steel Or Stainless Steel 304
Material For Work Table:
Stainless Steel 304
Purification Rank:
100 Clean Class, ISO 5
Power Supply:
220V 50Hz
HEPA Filter Efficiency:
H13, 99.99% At 0.3um
Certification:
CE,ROHS,ISO9001,ISO14001
Verage Velocity:
0.3~0.5 M/s
Noise:
<65dB
Product Description

bench horizontal laminar flow hood airflow horizontal clean bench laminar flow cabinet

Product Description:



Product information

The intergration vertical clean bench adopts airflow forming principle of vertical unidirectional airflow, and makes low noise centrifugal fan, plenum chamber and HEPA filter into a unit structure alone.



Architectural feature

1.The cabinet is cold rolled steel with powder coated and the table-board is sand light stainless steel. Adopted glass baffle, LED show, electronic control board and touch switch in two sides.

2.Adopt adjustable air system which has little shock, stable, low noise, maintenance free and stable.

3.Assembling manometer to indicate differential pressure, it can remind when to renewal the HEPA filter.

Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 0Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 1
Integration Vertical Clean Bench
Purification class: class 100 / ISO 5
HEPA efficiency: 99.99%@0.3um
Power supply: 220V/50Hz
Cabinet material: powder coated steel/stainless steel
Table-board material: Sand polished stainless steel
Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 2Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 3

Features:

  • Product Name: Laminar Clean Bench
  • Size: 1000*700*1850mm
  • UV Lamp: Optional
  • Air Flow: Vertical/Horizontal/
  • Control System: Microcomputer Control
  • H14 Filter Laminar Flow Clean Bench
  • 150W Laminar Air Flow Cabinet
  • Horizontal De Humidifer Clean Bench


Technical Parameters:

Item
Clean Bench
for One Person
Small Clean Bench
for Two Person
Big Clean Bench
for Two Person
Model
YN-CZT-01
YN-CZT-02
YN-CZT-03
External Size (WxLxHmm)
1000x700x1850
1200x700x1850
1500x700x1850
Internal Size (WxLxHmm)
900x650x600
1100x650x600
1400x650x600
Purification rank
(ISO14644-1 standard)
100
100
100
Airflow (m³/h)
600 ~ 950
750 ~ 1100
950 ~ 1400
Wind Velocity (m/s)
0.25 ~ 0.45
0.25 ~ 0.45
0.25 ~ 0.45
Filtration efficiency
(%@0.3μm)
99.99
99.99
99.99
Illumination (≥1ux)
300
300
300
Power (W)
135
135
135
Noise dB (equipment edge)
≤65
≤65
≤65
Power supply (V/Hz)
220/50
220/50
220/50
LED standard (W×PC)
18×1
18×1
18×1
Material
The cabinet is cold rolled steel or stainless steel
the table-board is sand light stainless steel


Applications:

YN Laminar Clean Bench is an ideal product providing clean and dust-free work environment for experiments, research and production. It is a vital part of any cleanroom and laboratory. Its powder coated hood, horizontal dehumidifier, and 100-class laminar flow cabinets are designed to meet the highest standards in cleanliness and safety. YN-CZT/YN-SPT Laminar Clean Bench can be used for various applications, such as in medical and pharmaceutical laboratories, semiconductor and electronics industries, biotechnology and life sciences, food processing industries, and many others. It features a microcomputer control system, 1000*70*1850mm size, and a noise level of ≤65dB(A). Furthermore, it is also backed by a 1 year warranty, ensuring your satisfaction.

Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 4



Customization:

Customized Service for YN Laminar Clean Bench

  • Brand Name: YN
  • Model Number: YN-CZT/YN-SPT
  • Place of Origin: China
  • Power Supply: 220V/50Hz
  • HEPA Filter: 99.95% Efficiency
  • Noise Level: ≤65dB(A)
  • Material: Stainless Steel
  • UV Lamp: Optional

We provide customized services for 200w laminar clean bench, H14 filter laminar flow clean bench, powder coated hood clean bench, stainless steel laminar air flow clean bench.

 Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 5Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 6Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 7Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 8



Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 9

Support and Services:

Laminar Clean Bench Technical Support and Service

We provide dedicated technical support and service for the Laminar Clean Bench. Our trained technicians are available to help you with any technical problems you may encounter, from installation and use to troubleshooting and maintenance.

If you have any technical questions or issues, please contact us by phone or e-mail. We will be glad to help you find a solution. If necessary, our technicians can also come to your site to provide on-site assistance and training.

We also offer comprehensive maintenance and repair services for the Laminar Clean Bench. We can inspect and test the equipment to ensure it is operating correctly, and make any necessary repairs or adjustments. Our technicians can also provide advice and recommendations on how to keep your Laminar Clean Bench running smoothly and efficiently.



Packing and Shipping:

Packaging and Shipping of Laminar Clean Bench

The Laminar Clean Bench will be delivered in a robust and secure packaging to ensure that it is safe during transit.

The package includes:

  • The Laminar Clean Bench
  • All the components of the Laminar Clean Bench
  • Installation Manual
  • Safety Instructions



 Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 10

Company Profile:

Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 11Exhibition:

Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 12



Why Choose Us:



Quality Wins Trust
We have exported our air shower room , clean room , pass box, clean bench, fan filter unit, HEPA filter box, laminar air flow ceiling etc. to more than 50 countries. Our purification equipment have been widely applied in Bio-pharmacy,Precise electronics,Medical healthcare,Food Chemistry,Laboratory,Farm, Aerospace, Automobile manufacturing industry and so on.
Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 13Cleanroom Cleaning Horizontal Laminar Flow Hood 220V 50Hz 14

FAQ:

Q: What brand is the Laminar Clean Bench?
A: The Laminar Clean Bench is YN brand, model number is YN-CZT/YN-SPT, and it is made in China.
Q: What is the working principle of the Laminar Clean Bench?
A: The Laminar Clean Bench uses high-efficiency filter to provide clean air and laminar flow for working environment, which can effectively reduce the pollution of particulate and microorganism in the air.
Q: What is the size of the Laminar Clean Bench?
A: The size of the Laminar Clean Bench is customizable.
Q: What is the noise level of the Laminar Clean Bench?
A: The noise level of the Laminar Clean Bench is less than 65dB.
Q: How to maintain the Laminar Clean Bench?
A: It is important to maintain the Laminar Clean Bench regularly. You need to check the air filter and clean the surface of the bench with a damp cloth.
