Hongkong Yaning Purification industrial Co.,Limited violaquan@dgync.com 86--18373128025
Product Details
Place of Origin: guandong
Brand Name: YN
Certification: CE/ISO
Model Number: YN001
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 1500$
Packaging Details: 7
Delivery Time: 10-15day
Payment Terms: TT
Accessories: |
Fan, Filter, Light, Socket |
Pressure: |
Positive/Negative |
Material: |
Stainless Steel |
Lighting: |
LED |
Size: |
Customized |
Temperature: |
18-25℃ |
Surface Finish: |
Mirror/Matte |
Application: |
Medical, Electronics, Food |
Accessories: |
Fan, Filter, Light, Socket |
Pressure: |
Positive/Negative |
Material: |
Stainless Steel |
Lighting: |
LED |
Size: |
Customized |
Temperature: |
18-25℃ |
Surface Finish: |
Mirror/Matte |
Application: |
Medical, Electronics, Food |

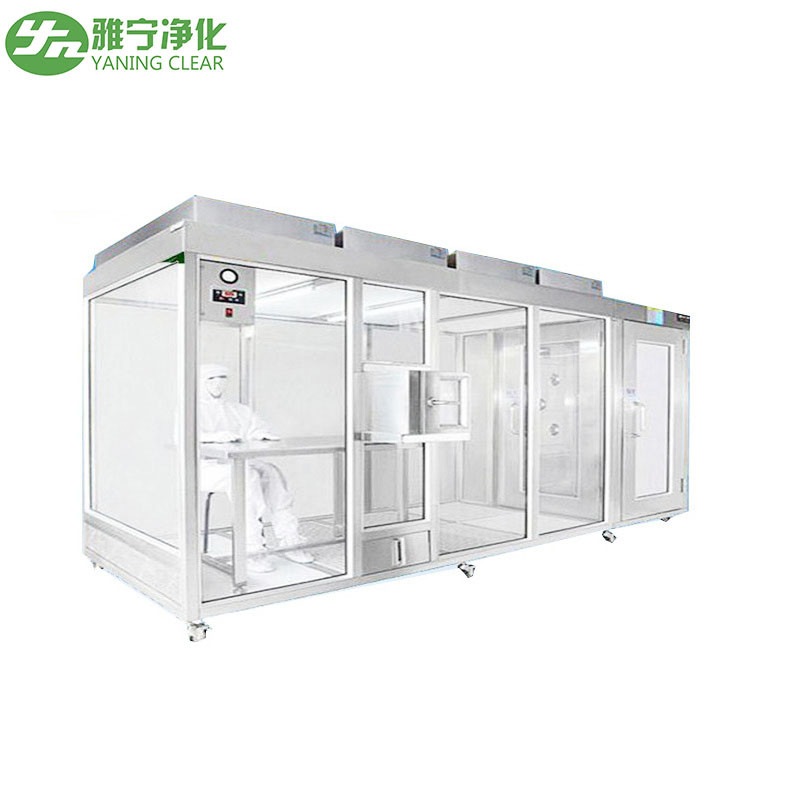

Modular clean room can provide high level of clean area with the least expenses. Furthermore, with modular structure, modular clean room is easier for installation.
1.Mainly applied in biological pharmacy and electrical industry
2.Supplied to USA, UK, Canada, European countries covering every corner of the world.
| Model | YN001-6*3 | YN002-6*4 | YN003-6*5 |
| Core working size(mm) | 3680(L)*3680(W)* 2400(H) | 3680(L)*4880(W)*2400(H) | 3680(L)*6080(W)* 2400(H) |
| External size(mm) | 5080(L)*3780(W)* 3300(H) | 5080(L)*4980(W)*3300(H) |
5080(L)*6180(W)* 3300(H) |
| Temperature and relative humidity | 23±0.5℃,50±5% | ||
| Cleanliness | ISO4-ISO7 | ||
| FFU specification | 1175*575*276,18 | 1175*575*276,24 | 1175*575*276,30 |
| HEPA rate | H13,H14 | ||
| Power | AC220V,1Ø,50Hz | ||
| Total rate(kW) | 15 | 18 | 20 |
| Refrigerating capacity (kW) | 7 | 7.2 | 10 |
| Heating capacity(kW) | 3 | 3 | 4 |
| Humidification capacity(kg/h) | 4 | 4 | 4 |
| Internal size(mm) | 750*742*300,2 sets | 900*460*300,1 set | 980*742*300,2 sets |
| External size(mm) | 760*550*323 | 820*605*363 | 900*660*373 |
| Intensity of illumination(Lx) | ≥500 | ||
| Control mode | Intelligence touch panel | ||
| APP control | Optional | ||
For industries such as medical, electronics and food, YN Clean Room Cabin is the perfect choice for those who are looking for a reliable and efficient cleaning environment. The YN001 model is made in guandong, and is certified with CE/ISO. It has a minimum order quantity of 1 and the price is 1500$. The package details are 7, and the delivery time is 10-15 day. The payment terms are TT. The size of the Clean Room Cabin is customizable, and the surface finish is available in either Mirror or Matte. Accessories such as fan, filter, light and socket are included, and the noise level is ≤58dB.
We offer Cleaning Room Cabin, Clean Room Booth and Clean Room Booth Equipment from brand YN and Model Number: YN001, with Place of Origin from Guandong. We are certified with CE/ISO accreditation. Minimum Order Quantity is 1 and price is 1500$, with Packaging Details of 7. Delivery time is 10-15day, with payment terms of TT. Lighting is LED and Air Flow is Laminar Flow, with Air Velocity of 0.45m/s, Temperature range of 18-25℃, and Material of Stainless Steel.
