Electrical Interlock Dynamic Pass Box Laboratory Stainless Steel Clean Room

Product Details

Place of Origin: China

Brand Name: Yaning

Certification: CE

Model Number: YN-DPB01

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: USD+360-520+unit

Packaging Details: The product is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.

Delivery Time: 8-15days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000+unit+per month

Get Best Price
Product Details
High Light:

Electrical Interlock Dynamic Pass Box

,

Cleanroom Dynamic Pass Box

Products Name::
Dynamic Pass Box
Material:
Stailess Steel SUS304/201
SUS Style::
Polish SUS/ Mirror SUS
Outoside Dimennsion:
600x600x600 Or Customized
Certification:
CE ISO
Inside Dimension:
430x520x470 Or Customized
Lock Type:
Mechanical Or Electromagnetic Interlock
For Other Optional:
Sterilizer,buzzer Alarm,interphone
Pass Box Styles::
Static Pass Box ,Air Shower Pass Box,Dynamic Pass Box
Styles Of Static Box:
External Door/Embedded Door
Products Name::
Dynamic Pass Box
Material:
Stailess Steel SUS304/201
SUS Style::
Polish SUS/ Mirror SUS
Outoside Dimennsion:
600x600x600 Or Customized
Certification:
CE ISO
Inside Dimension:
430x520x470 Or Customized
Lock Type:
Mechanical Or Electromagnetic Interlock
For Other Optional:
Sterilizer,buzzer Alarm,interphone
Pass Box Styles::
Static Pass Box ,Air Shower Pass Box,Dynamic Pass Box
Styles Of Static Box:
External Door/Embedded Door
Product Description

Product Description

Product Details:

The dynamic pass box is an auxiliary equipment of the clean room,which is mainly used for the transfer of small items between two clean areas or between the clean area and the non-clean area,so as to reduce the number of door opening in the clean room,minimize contamination of clean areas.
The dynamic pass box is equipped with ultraviolet germicidal lamps.the transferred items are sterilized by ultraviolet radiation before entering the clean area. on the one hand,it acts as an airlock to prevent high-level clean room high pressure from leaking.and on the other hand,it achieves a self-cleaning effect during the transfer process.the front and rear doors of dynamic pass box are also equipped with electronic interlocking or mechanical interlocking.This equipment is widely used in biological laboratories,pharmaceutical factories,hospitals, food processing,electronics factories,painting and other air purification process.

Product Parameter:

Product Name Dynamic Pass Box
Model YN-ZJC-01 YN-ZJC-02 YN-ZJC-03
External Size WxDxH(mm) 680x580x1100 950x600x1450 1150x800x1650
Internal Size WxDxH(mm) 500x500x500 600x600x600 800x800x800
U15 ULPA Filter(mm) 283x301x93x1pcs 383x401x93x1pcs 583x601x93x1pcs
Fan Power(W) 195Wx1pcs 170Wx1pcs 170Wx1pcs
Sterilization Power(W) 6Wx1pcs 8Wx1pcs 15Wx1pcs
LED Lamp Power(W) 6Wx1pcs 6Wx1pcs 12Wx1pcs



Product Pictures detail:

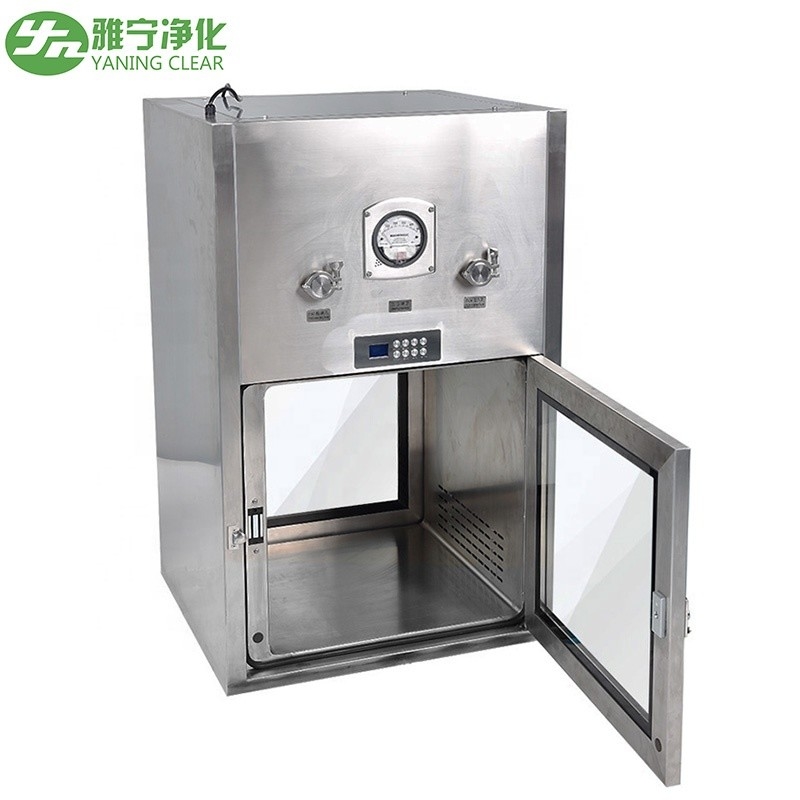

Electrical Interlock Dynamic Pass Box Laboratory Stainless Steel Clean Room 0Electrical Interlock Dynamic Pass Box Laboratory Stainless Steel Clean Room 1Electrical Interlock Dynamic Pass Box Laboratory Stainless Steel Clean Room 2




Certificate:

Electrical Interlock Dynamic Pass Box Laboratory Stainless Steel Clean Room 3

Our Factory:

Electrical Interlock Dynamic Pass Box Laboratory Stainless Steel Clean Room 4


Dongguan Yaning Purificatication Equipment Co. Ltd was established in year 2011. It is located in Houjie town of Dongguan City. It is nearby Dongguan urban district with very convenient traffic access. It only takes one hour drive from our company to Shenzhen or Guangzhou airport. It is very convenient for overseas customers to visit us in a efficient way.
Our company occupy an area of 22,000 square meter with modernized office and workshop building. We are ISO 9001 certified and our major products has passed CE certification and obtained more than 20 patent. We are national certified high technology enterprise. Our Yaning brand purification equipment has won the honor "China Famous brand".

We have been concentrating on the research and design, production, sales and installation of purification equipment and after sales services since establishment. So far , we have grown up to be one of most powerful enterprise in purification industry in south China. Our main product cover several major categories and more than one hundred model type. Our main product include air shower room for person and cargo , clean room , pass box, clean bench, fan filter unit, HEPA filter box, laminar air flow ceiling etc. Our air filter product range from primary level to medium and high efficiency level in various types. We can also construct full set clean room project for customers as per specified technical requirement. Our equipment have been widely applied in hospital, health care, electronics, medicine, food, precise instruments, aerospace, automobile manufacturing industry and so on.
We have been positioning our market both at home and abroad since establishment. We have exported our purification equipment to more than 50 countries. They are distributed in North America , Euro, South America, Middle East, Asia. We have won very good reputation from overseas market and our business is growing fast.
We sincerely hope to establish long term business partnership with all friends at home and abroad. We will work with our partner shoulder by shoulder for a more prosperous future.
Electrical Interlock Dynamic Pass Box Laboratory Stainless Steel Clean Room 5
