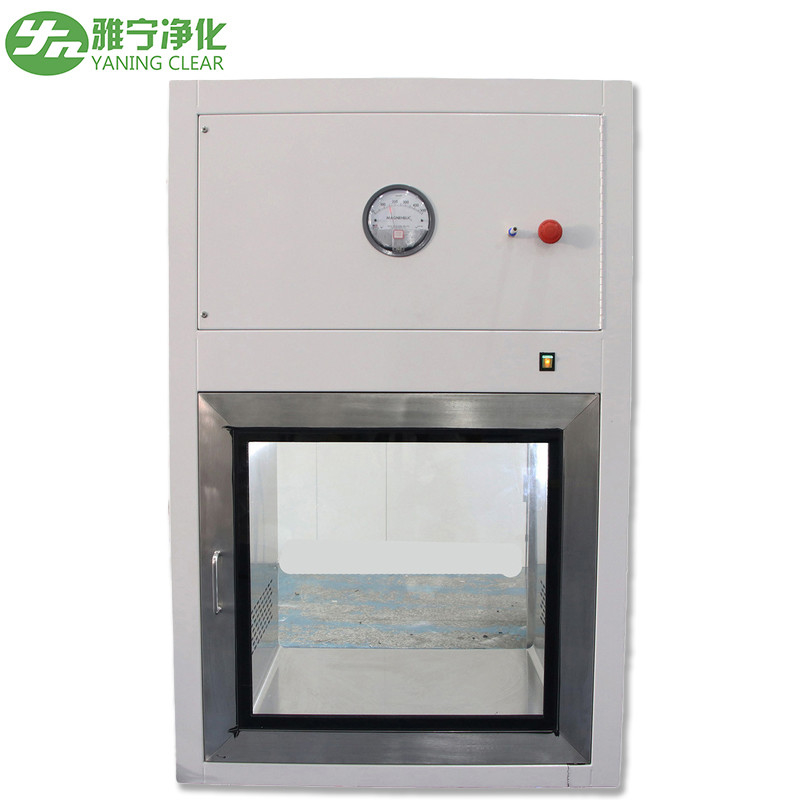

Cleanroom Pass Through Box with Reduced Contamination and Improved Efficiency

Name: Cleanroom Pass Through Box with Reduced Contamination and Improved Efficiency
Brand: YaNing
SKU: YN-PB-500
Price: 350 USD
Availability: InStock
Rating: 4.7 (150 reviews)

Product Details

Place of Origin: CN

Brand Name: YaNing

Certification: CE

Model Number: YN-PB-500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 350 USD

Packaging Details: Wooden Cases and Cartons

Delivery Time: 7 - 10 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000 per month

Get Best Price

Product Details

Product Description

Product Details

High Light:
                                                                                                                                                                                                                Cleanroom Pass Through Box, Reduced Contamination Pass Through Box, Improved Efficiency Pass Through Box


Applicable Industries:	Cleanroom	Warranty Of Core Components:	1 Year
Material:	Powder Coat Steel	Function:	Reduce To Pollute For Cleanroom
Interlock:	Mechanical Interlocking Device Or Electronic Interlocking Device

Applicable Industries:	Cleanroom
Warranty Of Core Components:	1 Year
Material:	Powder Coat Steel
Function:	Reduce To Pollute For Cleanroom
Interlock:	Mechanical Interlocking Device Or Electronic Interlocking Device

Product Description

Products Description

1.Characteristic of Pass Box
It is adopted the stainless steel inside, which is flat, neat, wearable.
The surface material of pass-box is cold rolled steel or stainless steel.
Doors in two sides with machinery or electronic interlock device marked two doors can't be in the open state at the same time.
Pass box with special seal stripe guarantee the airproof

1). Efficient sterilization with UV sterilization lamps.
2). The two sides of the door are equipped with electronic interlocking devices to ensure that the doors on both sides cannot be
opened at the same time.
3). The operation panel adopts a special touch switch.
4). Use a circular corner that is more suitable for the clean room principle.
5). The transmission window is made of stainless steel, which is smooth and wear-resistant.
6). The door sheet is sealed with silicone rubber inflatable sealing strip, which has good resilience, non-stick, cold resistance,
heat resistance and flame retardancy.
7). The inner cavity of the airtight transfer window is in an absolute seal when the door leaf is closed.
8). The outer casing of the airtight transfer window is in an absolute seal without disassembling the access panel.

1.Electronic interlocking device:

Electronic interlocking device: The internal use of integrated circuits, electromagnetic locks, control panels, lights and other interlocking, when one of the doors is open,
the other door open indicator light is off, to inform this door can not be opened, while electromagnetic Lock action to achieve interlocking. When the door is closed, the other electromagnetic lock starts to work and the indicator lights up, indicating that the other door can be opened.

2.Mechanical interlocking device:

Mechanical interlocking device: The internal interlocking is realized in the form of a machine. When one door is opened, the
other door cannot be opened. The other door must be closed before the other door can be opened.

Product Paramenters

Model	YN-PB-500	YN-PB-600	YN-PB-750	YN-PB-800
(W×D×H)mm External Dimension	660×500×600	760×600×700	910×750×850	960×800×900
(W×D×H)mm Internal Work Zone	500×500×500	600×600×600	750×750×750	800×800×800
Cabinet Material	Epoxy powder coated steel / Stainless steel
Insider Material	Stainless steel
Interlock system	Mechanical Interlock / Electronic Interlock
Electronic Interlock Or UV light Power supply	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
