Product Details
Place of Origin: Guangdong, China
Brand Name: Yaning
Certification: ISO 9001:2015, CE
Model Number: YN-MLB-1500
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD 3500-8500 / Set
Packaging Details: plywood
Delivery Time: 7-15 working days after order confirmation
Payment Terms: T/T,L/C,Western Union
Supply Ability: 200 Sets per Month
Cleanliness Class: |
ISO 5 (Class 100) |
Airflow Type: |
Vertical Laminar Downflow |
HEPA Filter Efficiency: |
H14 ≥99.995% At 0.3μm |
Material: |
304 Stainless Steel |
Overall Size (LxWxH): |
1500mm X 1200mm X 2200mm |
Working Area (LxWxH): |
1400mm X 1100mm X 800mm |
Air Velocity: |
0.45 M/s ±20% |
Noise Level: |
≤65 DB(A) |
Power Supply: |
220V/50Hz Or 110V/60Hz |
Assembly Time: |
≤2 Hours With 2 Persons |
Cleanliness Class: |
ISO 5 (Class 100) |
Airflow Type: |
Vertical Laminar Downflow |
HEPA Filter Efficiency: |
H14 ≥99.995% At 0.3μm |
Material: |
304 Stainless Steel |
Overall Size (LxWxH): |
1500mm X 1200mm X 2200mm |
Working Area (LxWxH): |
1400mm X 1100mm X 800mm |
Air Velocity: |
0.45 M/s ±20% |
Noise Level: |
≤65 DB(A) |
Power Supply: |
220V/50Hz Or 110V/60Hz |
Assembly Time: |
≤2 Hours With 2 Persons |

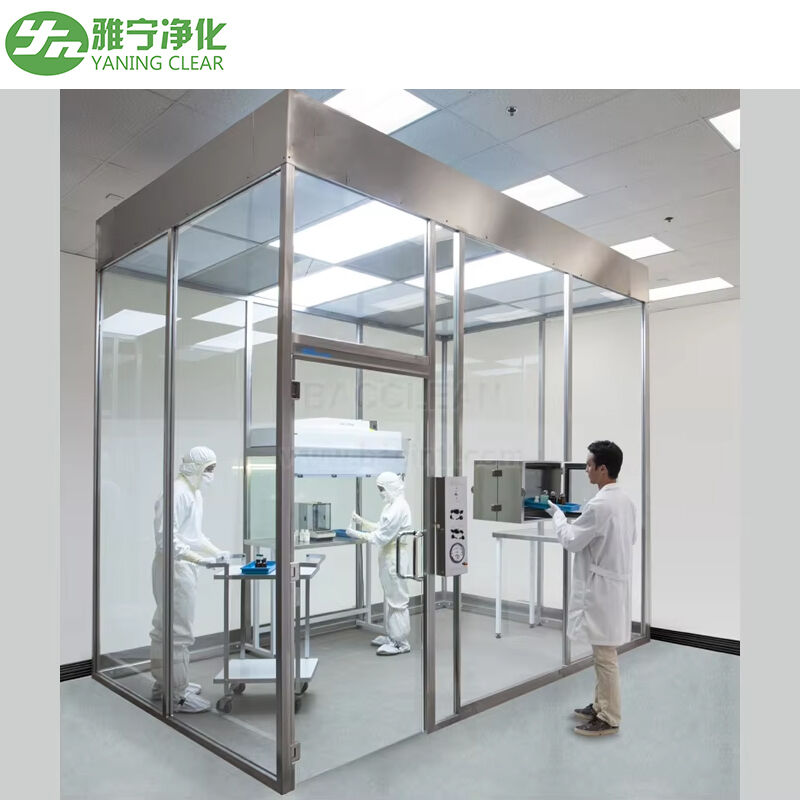

The YN-MLB-1500 is a modular clean room booth engineered for rapid, tool-free deployment. Designed with snap-in panel technology, this booth can be fully assembled by two persons in under two hours—eliminating the need for specialized contractors and minimizing production downtime.
Unlike traditional clean room booths that require days of construction, the YN-MLB-1500 delivers operational readiness within hours. Our turnkey service covers everything from site assessment to staff training—so you can focus on production, not procurement.
