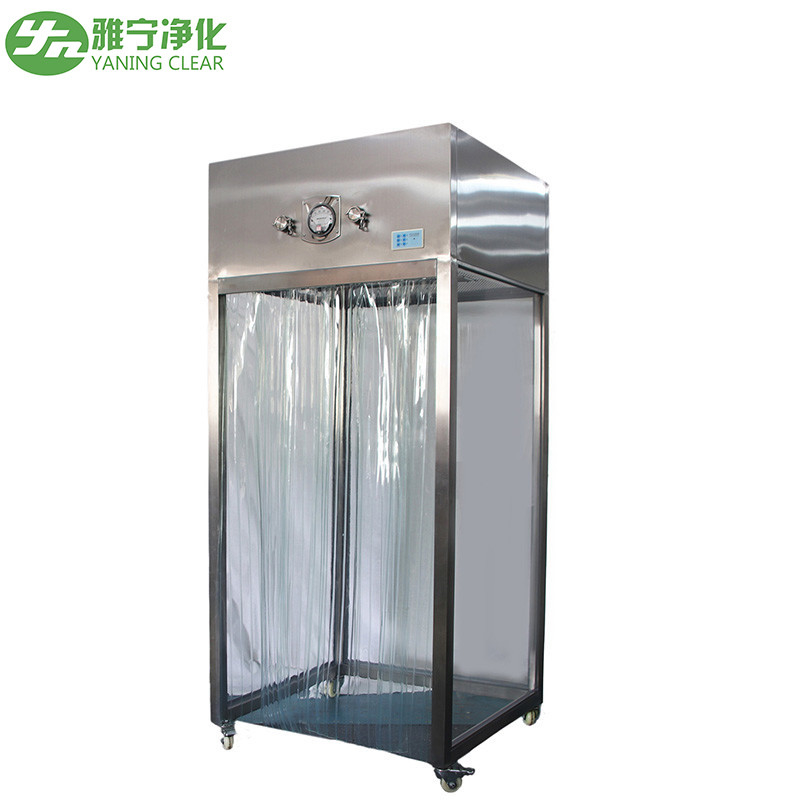

Stainless Steel Laminar Air Flow System , Sampling Booth For Raw Materials

Product Details

Place of Origin: Guangdong China

Brand Name: YN

Certification: CE/ISO

Model Number: YN-980B

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Reconsideration

Packaging Details: Wooden case or as your requirement

Delivery Time: 7-15 workdays

Payment Terms: L/C,D/A,T/T,Western Union

Supply Ability: 5000 sets /month

Get Best Price
Product Details
Highlight:

operating room ceiling system

,

raw material sampling booth

Product Name::
Sampling Booth
Material::
Stainless Steel
Size::
700*900*1900mm
Cleanliness:
10000 Class≥0.5μm(USA Federal Standard 209E)
Air Velocity:
0.25-0.6m/s
Power:
AC,Single Phase 220V/50Hz
Laminar Type:
Vertical Laminar Flow
Packaging:
Wooden Case
Product Name::
Sampling Booth
Material::
Stainless Steel
Size::
700*900*1900mm
Cleanliness:
10000 Class≥0.5μm(USA Federal Standard 209E)
Air Velocity:
0.25-0.6m/s
Power:
AC,Single Phase 220V/50Hz
Laminar Type:
Vertical Laminar Flow
Packaging:
Wooden Case
Product Description
Product Description

YANING GMP Portable Laboratory Dust Free Modular Clean Room Dispensing Sampling Clean Booth
Sampling Booth has been designed to provide a Class 100 working environment at rest, with built-in scavenging system to ensure protection for the product, operator and surrounding environment.
Mobile sampling booth can be easily moved to various raw material storage areas sampling, used for various environmental storage areas. The device maximum clean class level up to one hundred, it is the required equipment for

GMP standard. The main performance parameters as below:
Purification level: 100-10000 class;
Noise: ≤ 63dB (A);
Vibration: ≤ 3μm ( three directions X, Y, Z);
Normal operating conditions: temperature 5-40℃; relative humidity 80%;atmospheric pressure 80-160Kpa;
Lighting: ≥ 300Lx;
Appearance: baking surface is bright and smooth; anti-static air curtain is smooth, vertical, no damage.
Stability: four casters in the same plane;
Casters: flexible and reliable.








Stainless Steel Laminar Air Flow System , Sampling Booth For Raw Materials 0

Stainless Steel Laminar Air Flow System , Sampling Booth For Raw Materials 1

Stainless Steel Laminar Air Flow System , Sampling Booth For Raw Materials 2

Product Detail


Stainless Steel Laminar Air Flow System , Sampling Booth For Raw Materials 3

Product Parameter

The system comprises:
* Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3μ at supply position
* Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3μ at exhaust position
* Fabtech make prefilter which conforms to EU 4 Grade, with efficiency of 90% down to 10µ. These Filters are basically made from micro-fibre-glass media and are inherently washable
* Fabtech make Intermediate filter which conforms to EU 7 Grade, with efficiency of 95% down to 3µ. These Filters are basically made from micro-fibre-glass media and are inherently washable
* Motor Blower provided are statically and dynamically balanced, Supply of sufficient capacity and static pressure is used to take care of airflow requirement for entire life of HEPA. The blower is high-performance, noise abated, light weighted
statically and dynamically balanced
* SS 304 Double Walled Side Panels
* Mechanical Differential Pressure Gauge (0mm-25mm: 2 Nos.) to monitor pressure drop across intermediate filter
* Photohelic Differential Pressure Gauge HEPA filter and (0mm-10mm: 1 No.) To monitor pressure drop across PRE Filter with respect to ambient
* Electrical control panel mounted on the side panel of the unit
* Tube Light
* ON/OFF Switches for motor
* 5/15 Amp single-phase switch socket for external equipment
* DOP Test port at upstream of HEPA filter


ltem

YN-CYC01

YN-CYC02

YN-CYC03

Dimension

800*800*1200

1000*800*1200

1200*800*1200

material

Stainless steel 304

Class level

IS0 5 class 100

Parts

caster wheelpressure gauge
