|Product Name::||Static Pass Box||External Size:||660*500*600mm|
|Internal Size:||500*500*500mm||Interlock Structure:||Mechanical Interlock|
dynamic pass box,
pass through boxes for clean rooms

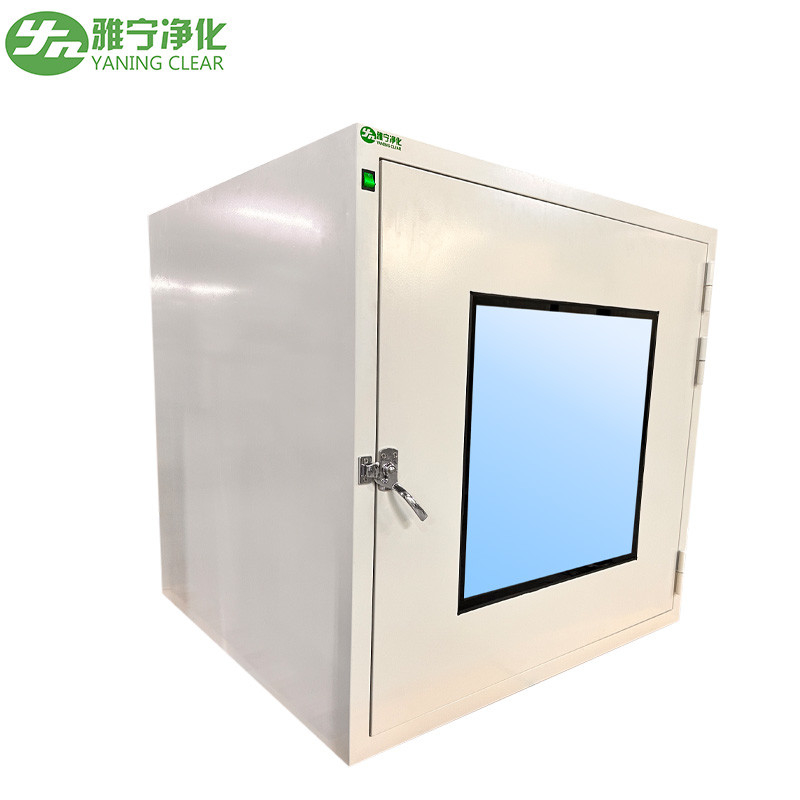

Stainless Steel 304 Mechanical Interlock Pass-through/box with UV Lamps for Clean Rooms
Product and Solution Selection
1. Outer and Inner Dimension. The outer dimension should be decided according to clean room design, while the inner dimension is for the operation area.
2. The dynamic passbox is suit for the transmission happened from lower cleanliness environment to higher cleanliness environment. If the transmission happens between same cleanliness, static passbox is recommended.
3. The direction of door opening should be considered according to the position of passbox.
4. SUS 304 is recommended for the casing of passbox.
5. If the transfer cart is required in clean room, the floor-mounted passbox is recommended.
Yaning manufactures comprehensive lines of Cleanroom Pass Box (also known as Pass-Through Air Locks, Pass-Throughs, Chambers or Transfer Hatches) to simplify contamination-free transfer of materials in and out of a classified environment. We can custom configure this product to meet special requirements for sizes, materials and features. Make a call or send an email to discuss your requirements.
Electrical or Mechanical interlocking system.
Multiple Option of Materials to minimize the cost.
Door with viewing glass.
Air Shower Type
UV Lamp Sterilization
Easy-to-install by Wall Mounted or Floor Mounted
Customized Size and Function Design
|External size (mm) (WXDXH)||660x500x600||760x600x700||810x750x880|
|Internal size (mm) (WXDXH)||500x500x500||600x600x600||750x750x750|
|Material||1:Entirety Sus304. 2:Entirety sus201.|
|3: External is steel with power coated, Internal is SUS304.|
|4: External is steel with power coated. Internal is SUS201.|
|Glass window size||350x350x8||395x395x8||480x480x|
|Interlocker||Mechanical or electronic for your choose|
Yaning export packing:
--Stretch film strapped whole cabinet,
--Foam inside protected,
--Plywood case solid fixed
--European standard bottom tray
What you can get from us?
1. Immediately responses for your inquiry and response saving your time, update your project processing.
2. Professional design team matches all your ideas;
3. Over 10years cleanroom, laboratory furniture and air filters producing experience guarantee the quality;
4. Strictly factory testing take out your troubles in advance;
5. ISO, CE, UL,TUV, SGS testing Certificates helped your business;
6. With 18monthes Warranty card service your business in good way;
7. Own the CNC machine, class 10000 clean room workshop, spray booth, 1300*1300 non-gap Mini-plated HEPA filter producing machine as well with over 5years clean room producing experience workers keep well each your orders.
8. Completed of set documents issued with final products help you easy with our products.
