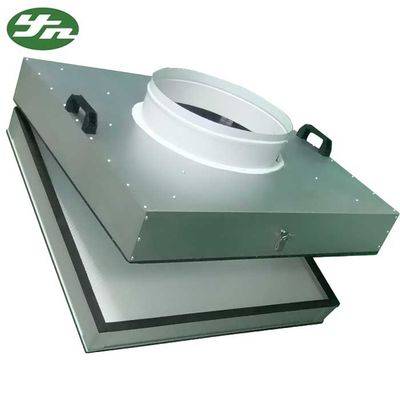

Replaceable Hepa Filter Ceiling Hepa Diffusers

Replaceable Hepa Filter Ceiling Hepa Diffusers
Replaceable Hepa Filter Ceiling Hepa Diffusers Replaceable Hepa Filter Ceiling Hepa Diffusers Replaceable Hepa Filter Ceiling Hepa Diffusers

Large Image :  Replaceable Hepa Filter Ceiling Hepa Diffusers

Product Details:
Place of Origin: China
Brand Name: YN
Certification: CE/ISO
Model Number: YN-HU-870
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: reconsideration
Packaging Details: First in carton,then made wooden tray
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 10000PCS/month

Replaceable Hepa Filter Ceiling Hepa Diffusers

Description
Product Name:: Hepa Supply Diffusers Hepa Filter: Mini Pleat Hepa Filter
Efficiency: H12-U15 Out Dimension: 940*640*280mm
Interface: Round Duct Duct Size: Diameter 350mm
Hepa Size: 870*570*69mm Terms: FOB/CIF/EXW
High Light:

hepa filter terminal box

,

hepa filter module

,

cleanroom Replaceable Hepa Filter



Replaceable hepa filter ceiling hepa supply diffusers with hasp for cleanroom





1. Hepa supply diffusers description

Material and Operation Conditions

Media Domestic Glass fiber HV Glass fiber
Sealant PU Polyurethane
Cabinet Aluminum/Galvanized/Stainless steel
Separator EVA hot melt adhesive
Gasket PU Polyurethane, EVA, Neoprene

Filter Efficiency

(EN1822)

H13:99.97-99.99% 0.3μm

H14:99.995-99.999% 0.3μm

Max. Temperature 70℃
Max. Humidity Domestic Glass fiber: 80% HV Glass fiber: 100%

Product Introduction

Disposable HEPA filter with Hood is terminal filter for a variety of filtration systems, closed structure to prevent internal voids and leaks. Anodized aluminum casing quality, light weight, can full stick PEF cotton insulation. Include air input duct with optional diameter Φ250, Φ30, Φ350. Each filter has been strictly tested before factory.

Features: Strong ventilation, good looks, easy installation, Good sealing performance, light weight, high filtration efficiency.

Applications: Operating room, laboratory, pharmacy, microelectronics, film, optical equipment and food processing plants and other which demand high clean class level work environment.



2.Hepa supply diffusers structure

1). The Gel Seal filters are available in HEPA or ULPA efficiencies.



2). The dimple pleated filter pack is sealed in an anodized aluminum frame that contains a gelled channel to insure a leak free, tight seal.



3). The filter element is protected by an anodized aluminum housing and diffuser screen, with a damper control and challenge port for the measurement of challenged aerosol.



4). An anodized extruded aluminum center divider with access port provides access for adjustment of the distribution plate and measurement of the resistance and challenge aerosol.



5). A painted expanded metal faceguard on the downstream side protects the media.



3. Standard Model Technology Parameter

HEPA DIFFUSER DATA SHEET
Filter size Box size (top blow) Box size (side blow) Rated air flow Size of round interface Size of square interface Filter resistance
L*W*H(mm) L*W*H(mm) L*W*H(mm) m³/h mm mm H13 (Pa) H14 (Pa)
340*340*70 410*410*280 410*410*450 500 250 200*200 280 300
340*340*90 410*410*300 410*410*450 250 270
484*484*70 554*554*280 554*554*450 1000 300 300*200 280 300
484*484*90 554*554*300 554*554*450 250 270
610*610*70 680*680*280 680*680*450 1500 350 400*200 280 300
610*610*90 680*680*300 680*680*450 250 270
870*570*70 940*640*280 940*640*450 2000 350 500*200 249 280
870*570*90 940*640*300 940*640*450 220 250
1170*570*70 1240*640*280 1240*640*450 2500 ø300*2units ø450*1unit 630*200 249 280
1170*570*90 1240*640*300 1240*640*450 220 250
1260*610*70 1290*640*280 1290*680*450 3000 ø300*2units ø450*1unit 630*250 249 280
1260*610*90 1290*640*300 1290*680*450 220 250
Note:SIDE BLOW ONLY MATCH SQUARE INTERFACE
Filter resistance common difference is ±10%

Customized design is welcome.
